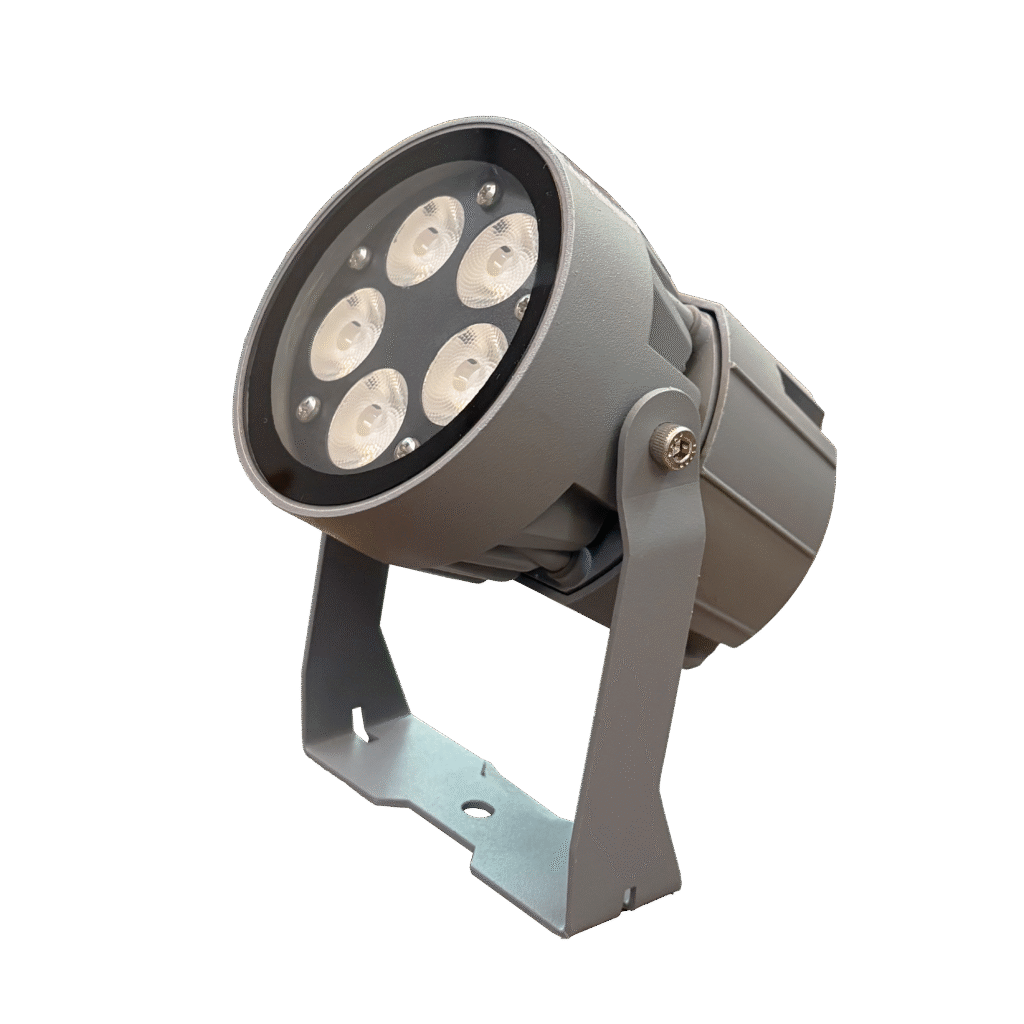

Product Model No. : LK LW 07 – 15
Façade Lighting breathes life into unique facades & architecture in private or public spaces. it can also be
used to add an artistic feel to the exteriors with shadows, also use up-lighting for pillars and columns to add a
simple contrast or to accentuate the object for making it the centre of attraction
Electrical & Power:
- Power Consumption : 15W
- Input Power : DC 24V
Optical Arrangement:
- Beam Angle : 120°
Lamp Source:
- LED Source : SMD Based
- Colour Temperature : 3000K
- CRI (Ra) : > 80
- Lumens/W : > 110
- Net Luminous Flux : 975
- No of LED's : 120 per meter
- LED Hours Burning life : 50,000
Control & Others:
- Control Option : ON / OFF Option
- Operation Mode : Manual Mode
- Working Temperature : +55° ~ -30°
- SDCM : < 5
- Power Factor (Min) : 0.9
- Driver/power unit : External Power Supply
Physical & Construction:
- Dimension : 1000 x 15 x 17mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey / Custom
- Mounting Type : Yoke Mount
- Impact Resistance : IK07
- Cooling : Passive Cooling System
