OverView

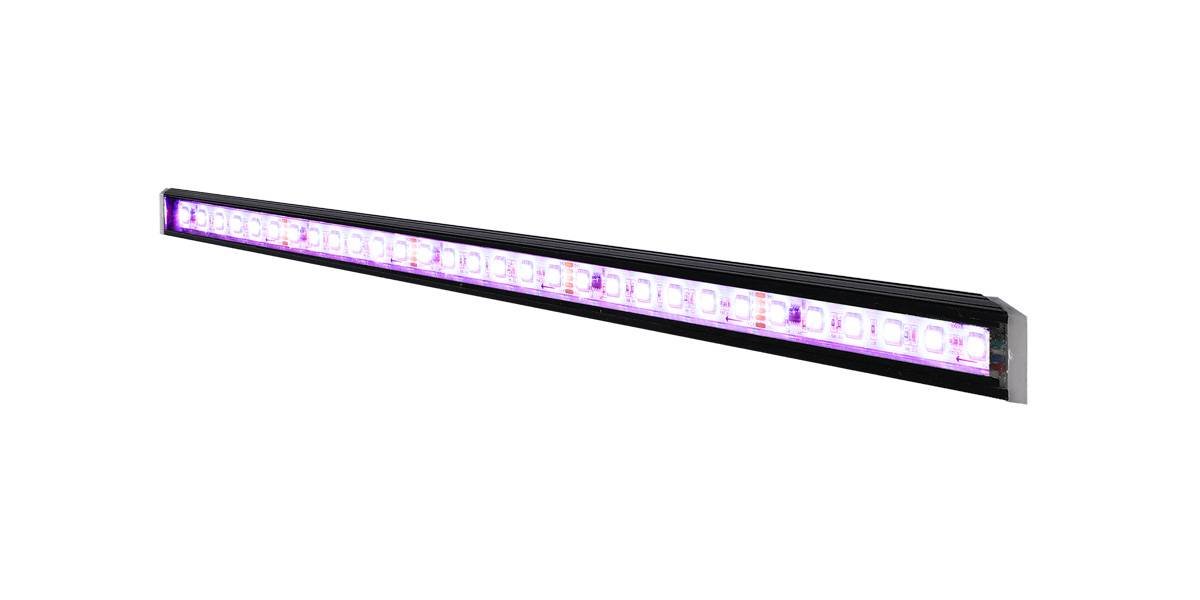

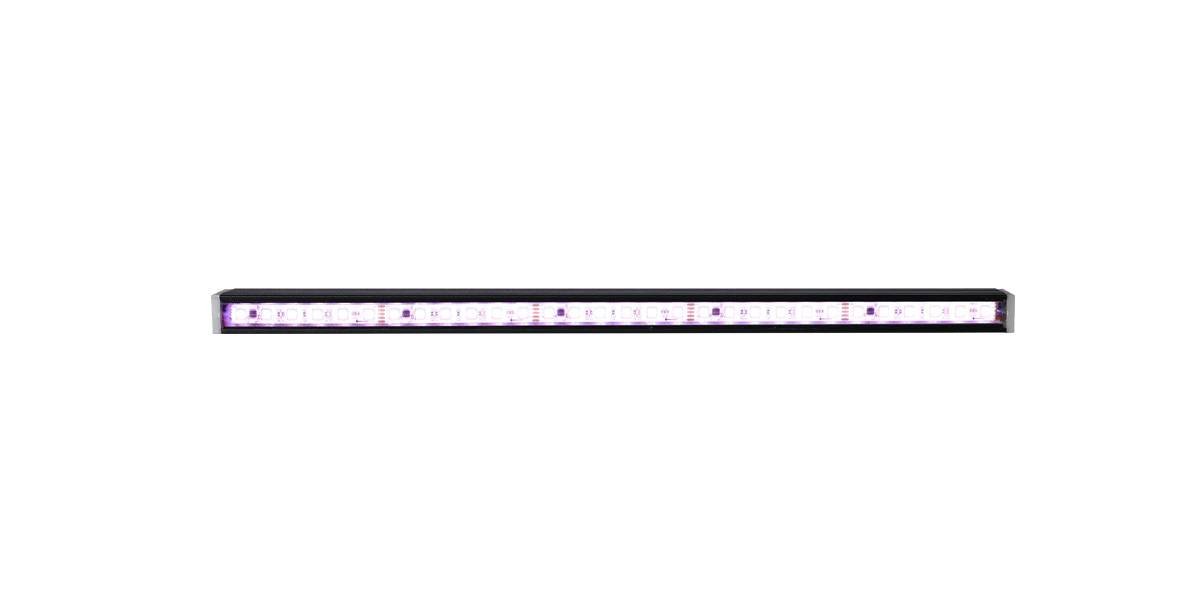

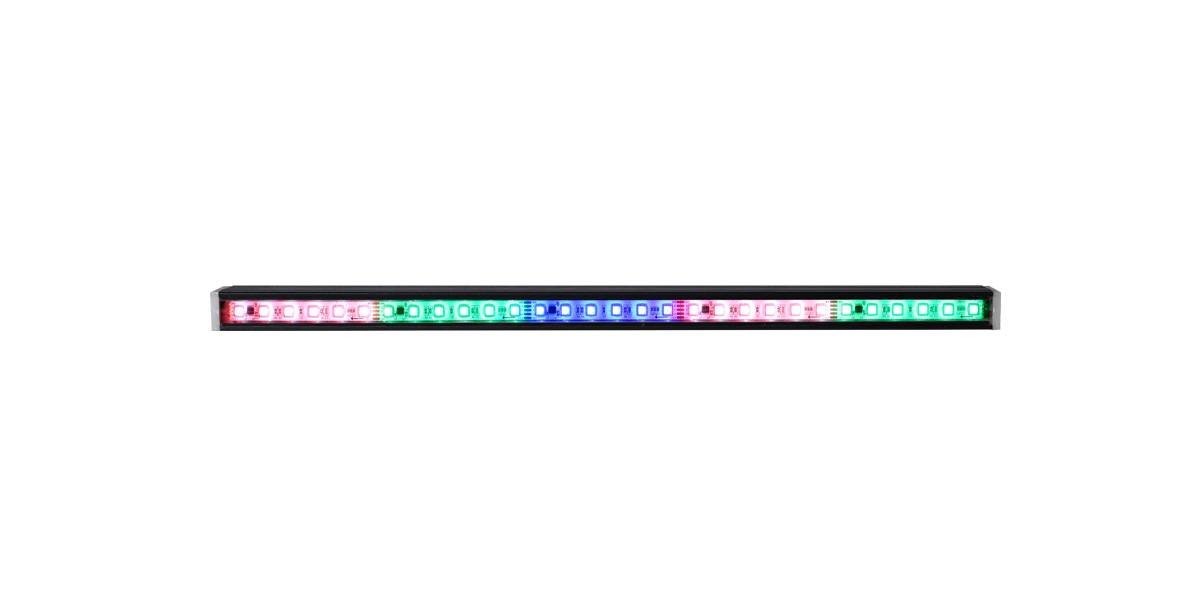

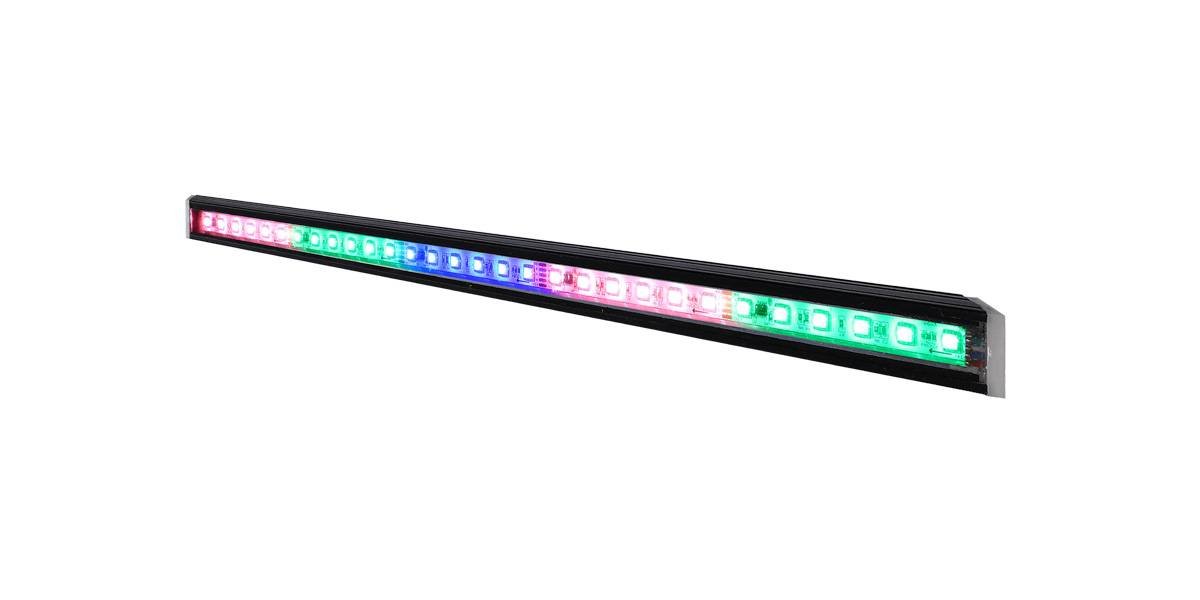

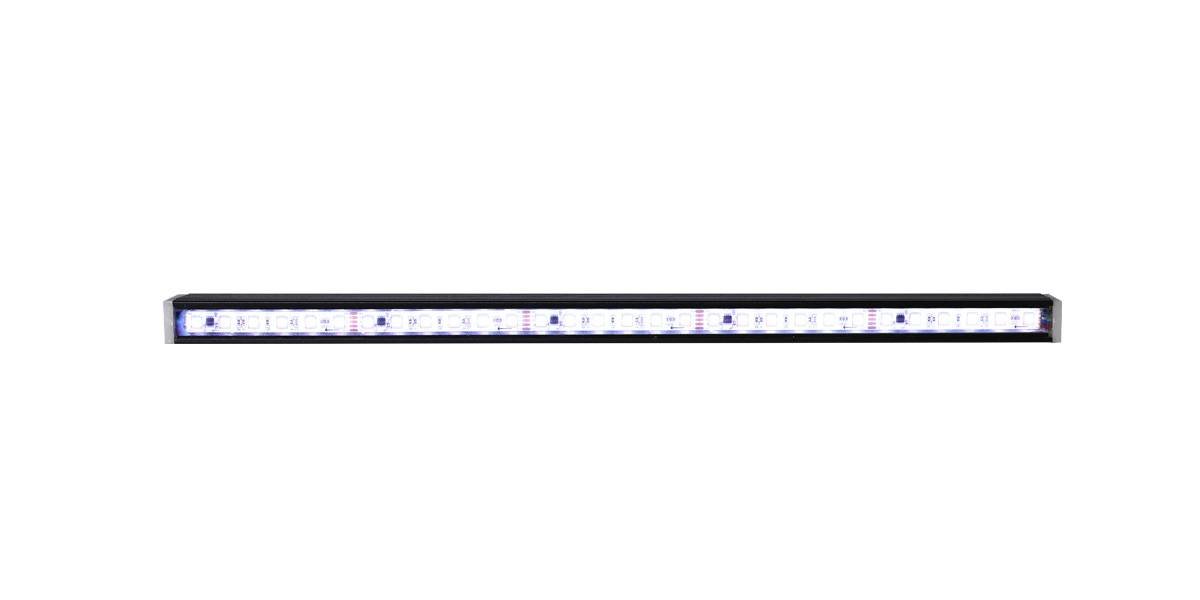

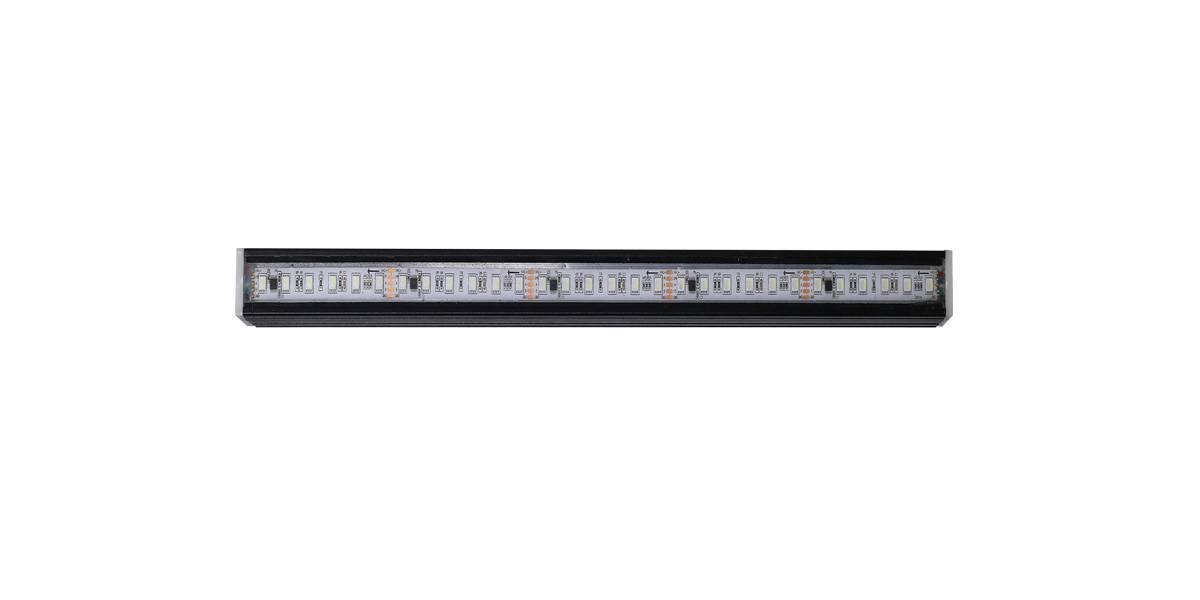

10W LED PIXEL BAR LIGHT

Product Model No. : LK PXL 0.5 – 10
Façade Lighting breathes life into unique facades & architecture in private or public spaces. it can also be
used to add an artistic feel to the exteriors with shadows,also use up-lighting for pillars and columns to add a
simple contrast or to accentuate the object for making it the centre of attraction.

Technical Specifications:

Electrical & Power:
- Power Consumption : 10W
- Input Voltage / Current : DC 24V

Optical Arrangement:
- Beam Angle : 120°
-Field Angle : 140°

Lamp Source:
-LED Source :SMD 5050
- Colour Temperature : RGBW(4 in 1)
- No of LED's : 30 No's
- No of Pixels : 5 Nos
- LED Hours Burning life : 50,000

Control & Others:
- Control Option : DmX512/Auto Mode
-DmX Channels : 4 DmX
-Working Temperature : +55° ~ -30°
-SDCM :<5
-Power Factor (Min) : 0.9
-Driver / power unit : External Power Supply

Physical & Construction:

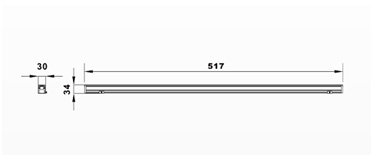

- Dimension : 30 x 34 x 517mm
- Ingress Protection : IP66 Rated
- Body Housing : Extruded Aluminium
- Body Colour : White / Grey / Custom
- Mounting Type : Bracket Mount
- Impact Resistance : IK05
- Cooling : Passive Cooling System
