OverView

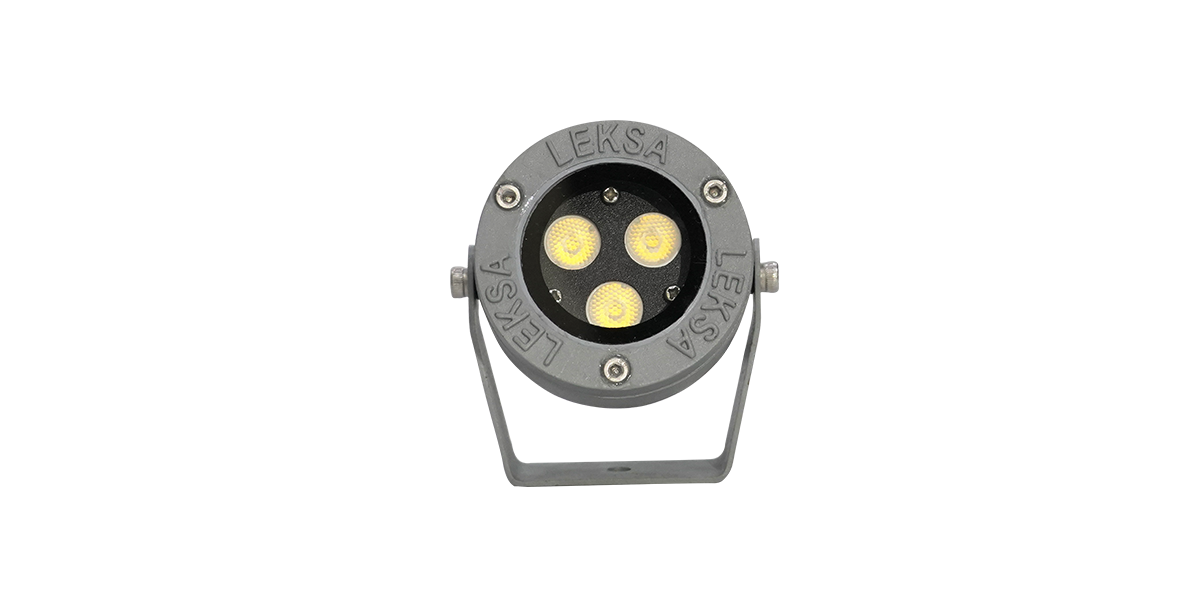

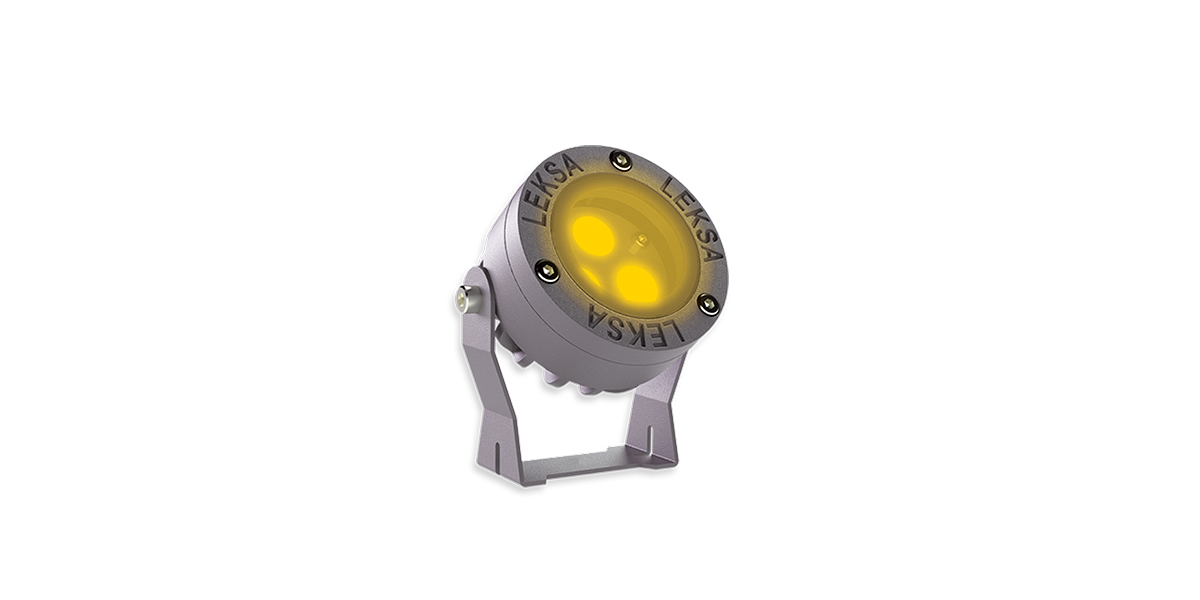

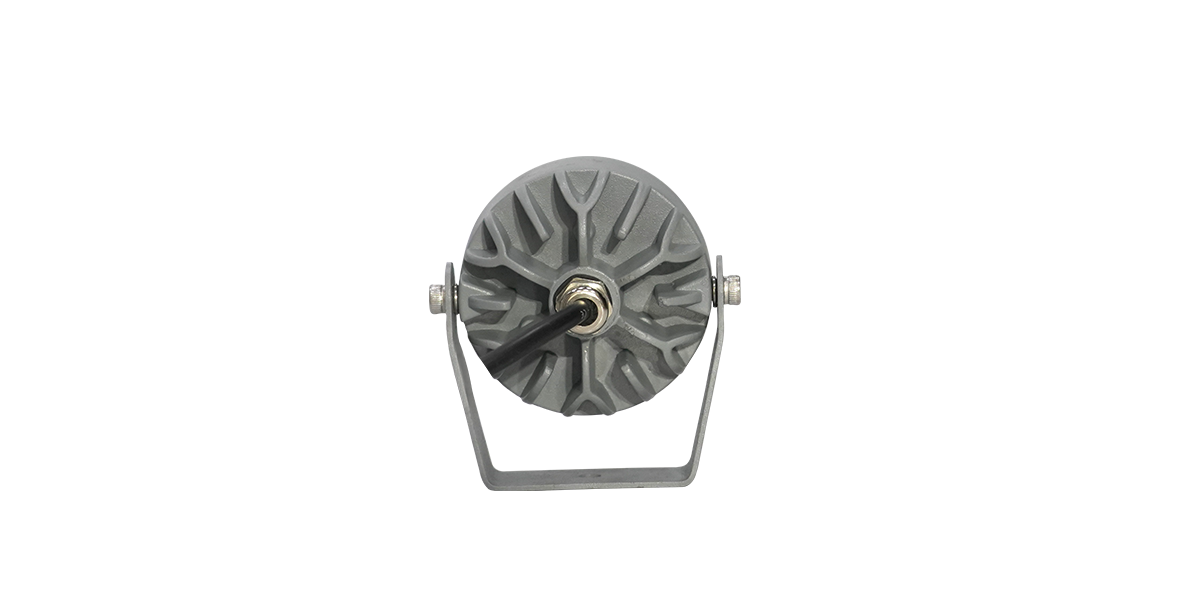

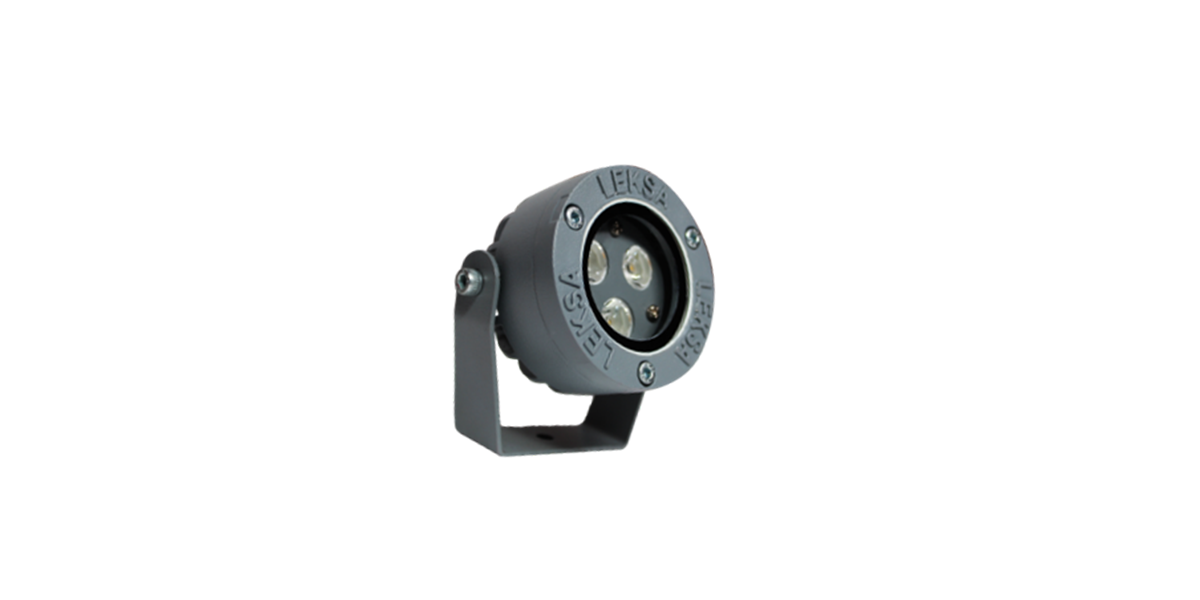

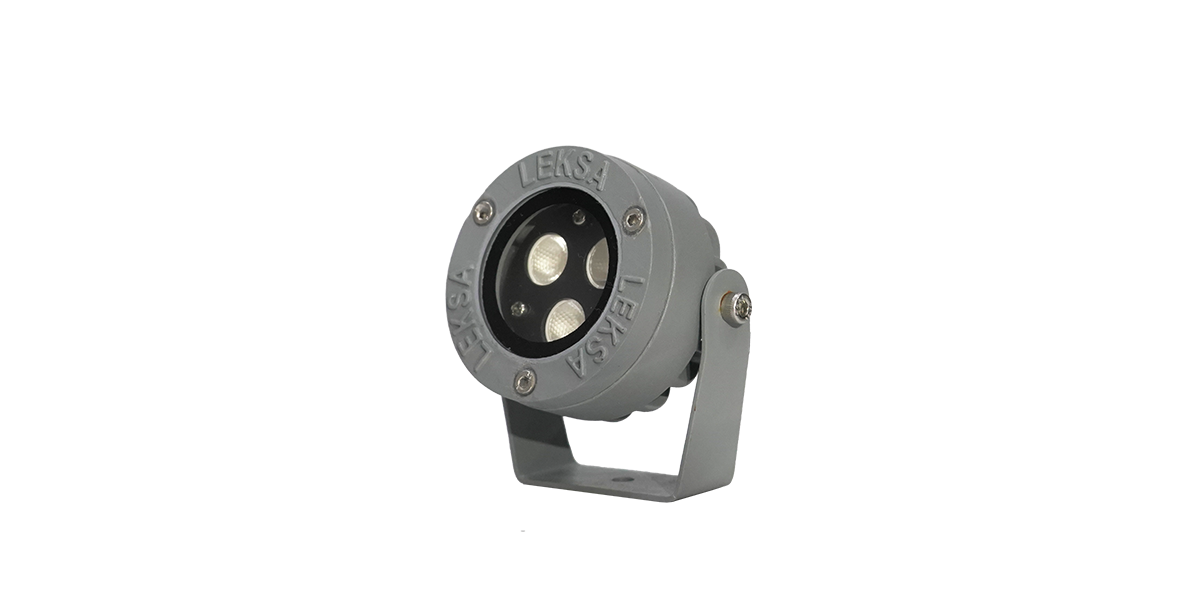

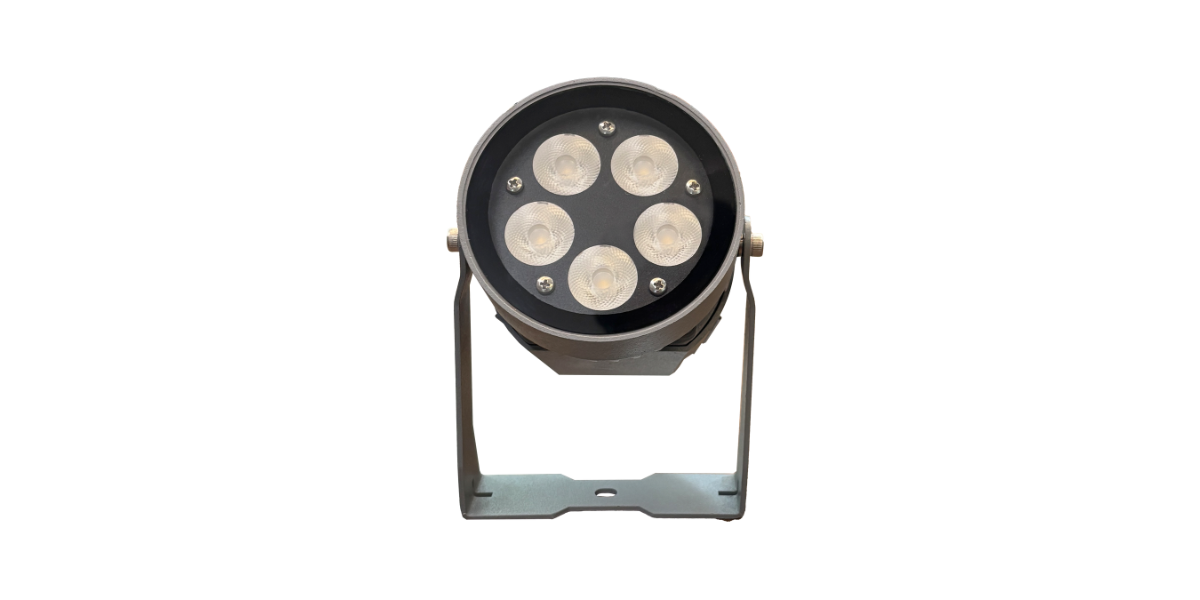

9W LED SPOT LIGHT

Product Model No. : LK SL 3 – 9

Façade Lighting breathes life into unique facades & architecture in private or public spaces. it can also be used to add an artistic feel to the exteriors with shadows, also use up-lighting for pillars and columns to add a simple contrast or to accentuate the object for making it the centre of attraction

Technical Specifications:

Electrical & Power:
- Power Consumption : 09W
- Input Power : DC 24V

Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 18°

Lamp Source:
- LED Source : SMD Based
- Colour Temperature : 3000K
- CRI : > 80
- Lumens/W : > 80
- Net Luminous Flux : 990
- No of LED’s : 3 No’s
- LED Hours Burning life : 50,000

Control & Others:
- Control Option : ON / OFF Option
- Operation Mode : Manual Mode
- Working Temperature : +55° ~ -30°
- SDCM : < 5
- Power Factor (Min) : 0.9
- Driver/power unit : External Power Supply

Physical & Construction:
- Dimension : 89 x 83 x 63mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey / Custom
- Mounting Type : Yoke mount
- Impact Resistance : IK07
- Cooling : Passive Cooling System
- Protection Class : II Class
