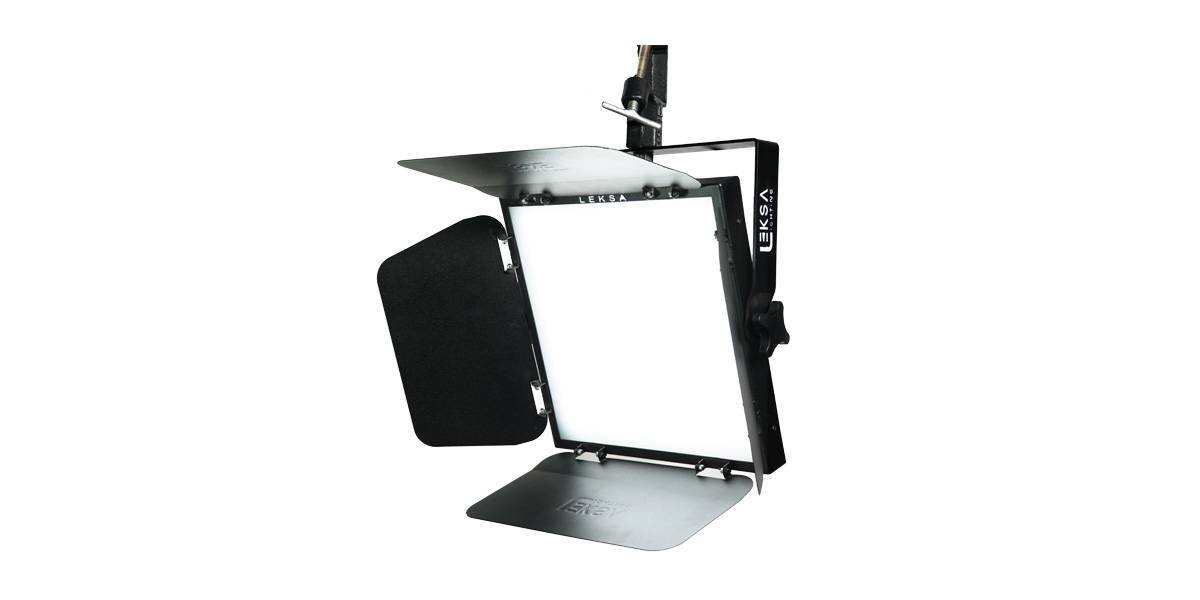

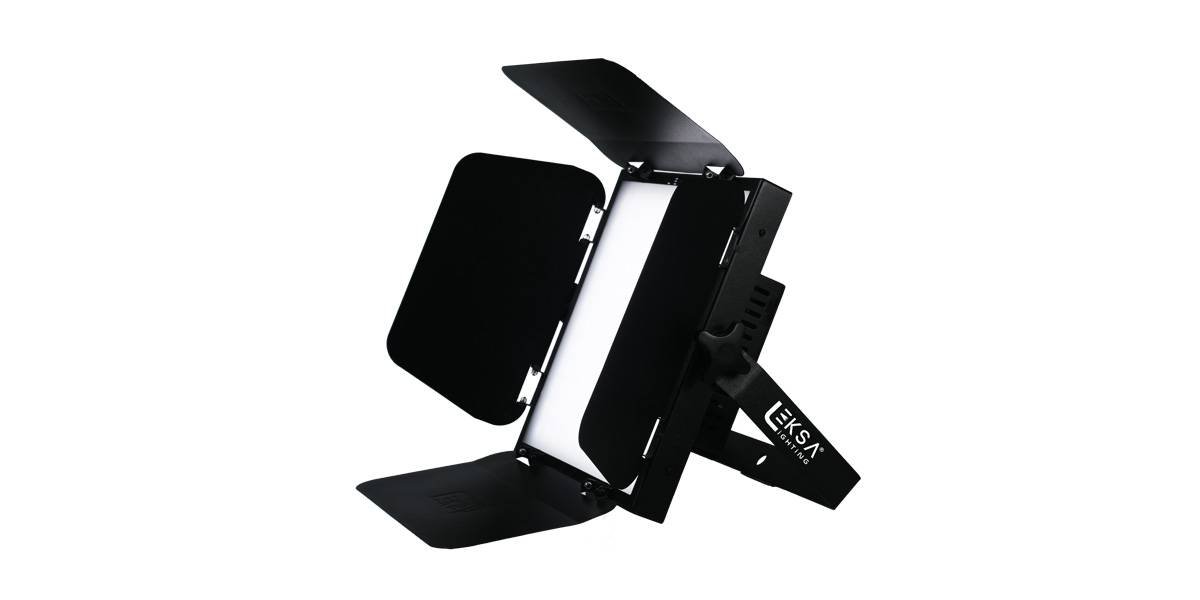

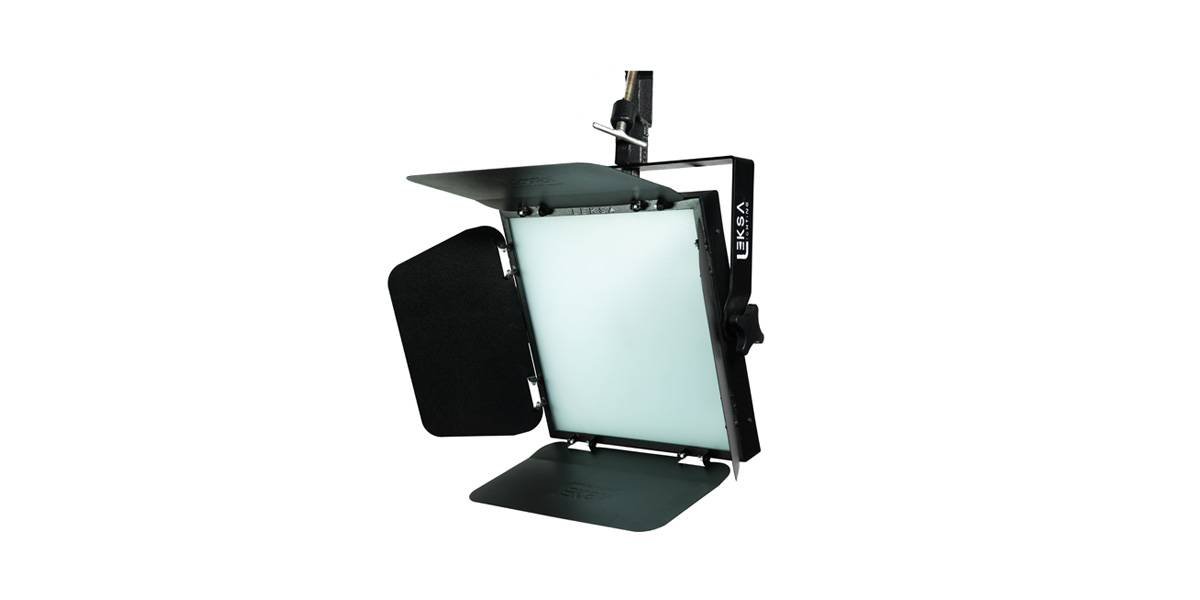

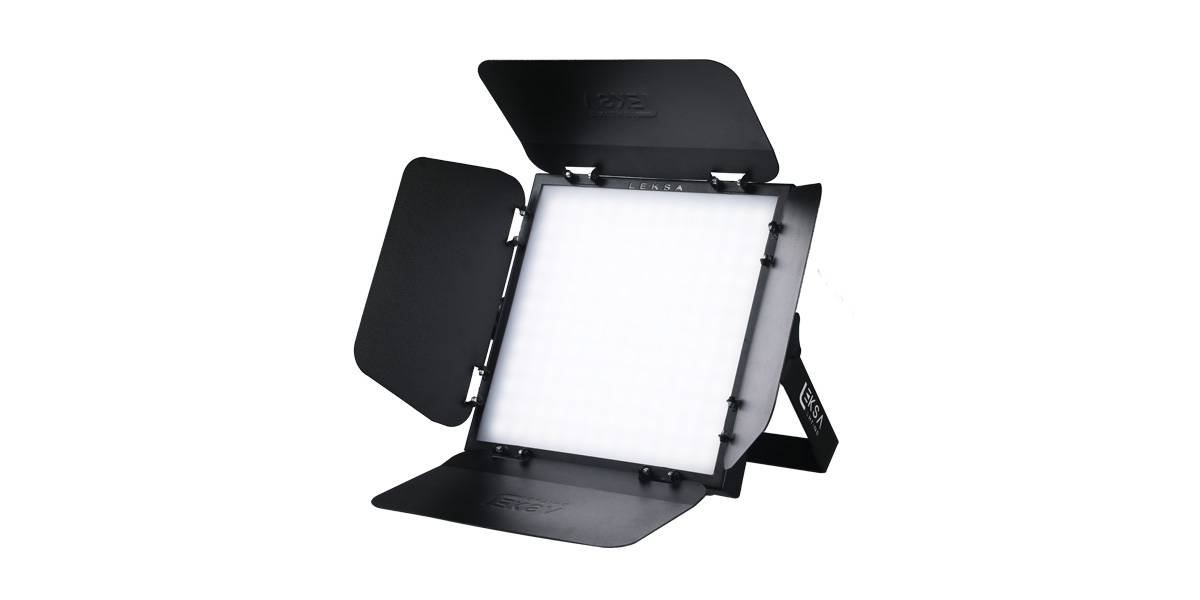

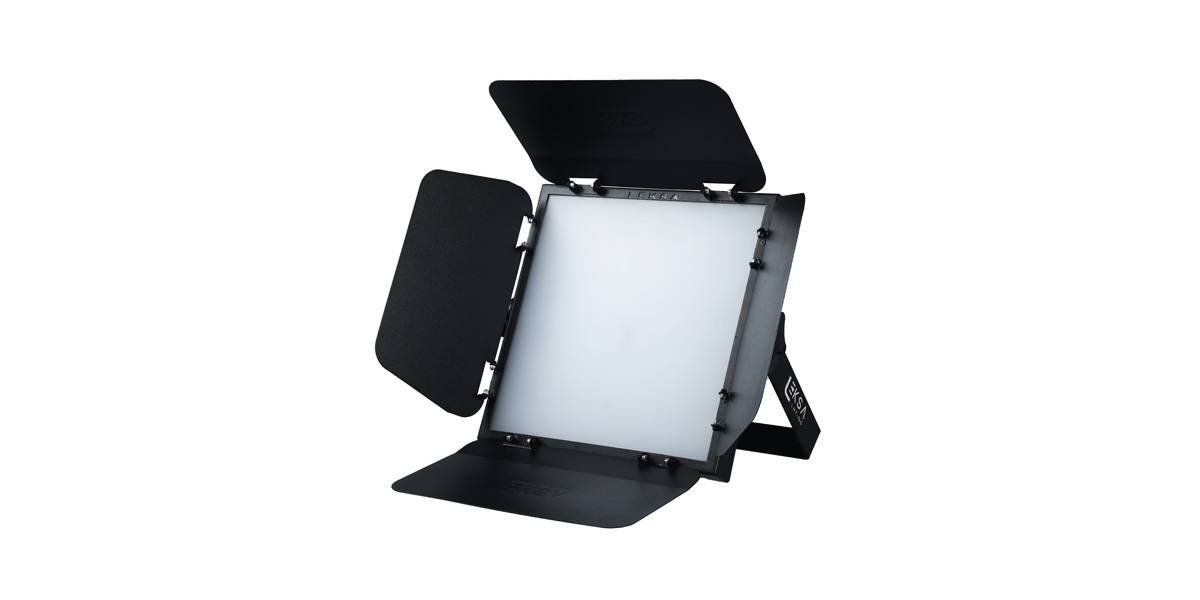

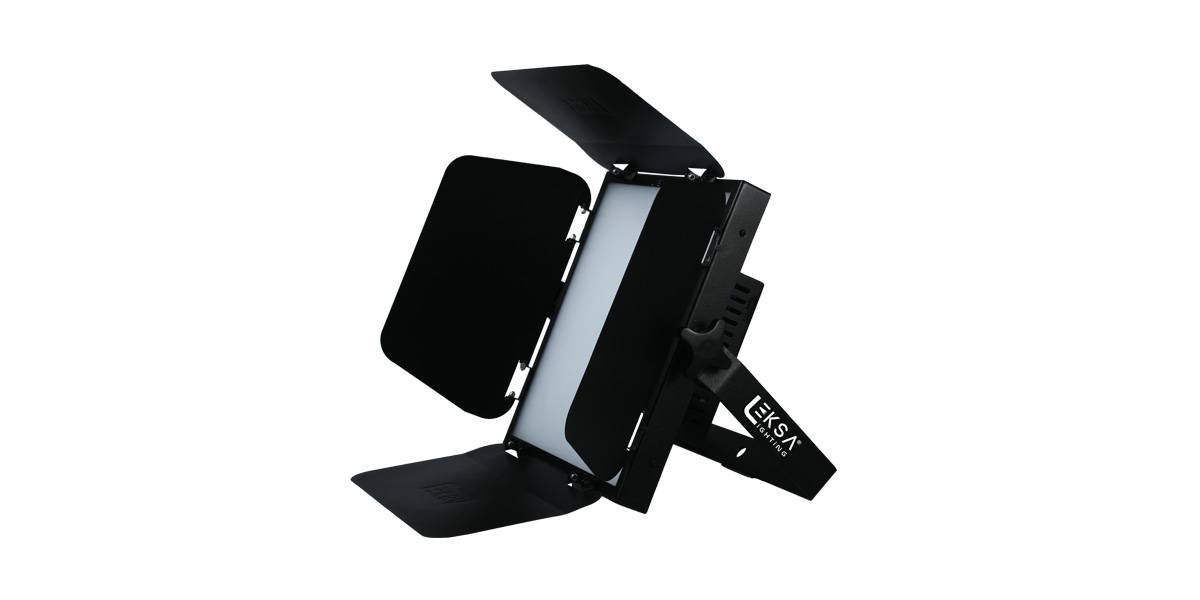

90W LED Soft Panel 3200K, 5600K

Product Model No. : LK P90S T/D

High quality LED Soft panel light with wide beam spread of 120 Degree provided with high purity parameters like CRI, TLCI & R9 Values above 95, Studio quality dimming from 100% ~ 0% along with Manual, DmX and Standalone modes of operation. Light is ideal to be used for Tv Studios Chroma and Anchor lighting application, Photography use, Film, Fiction requirement and multipurpose requirements.

Technical Specifications:

Electrical & Power:
- Power Consumption : 95W
- Input Voltage : AC 100V ~ 260V, 50Hz

Optical Arrangement:
- Beam Angle : 120° Spread
- PMMA Milk White Diffuser

Lamp Source:
- LED SMD Lamp Source
- CCT 3200K/5600K 144 x 0.75W Surface Mounted LED’s
- Colour Rendering Index 95+
- Tel. Lighting Consistency Index 95+
- 50,000 Hours Burning life

Physical & Construction:

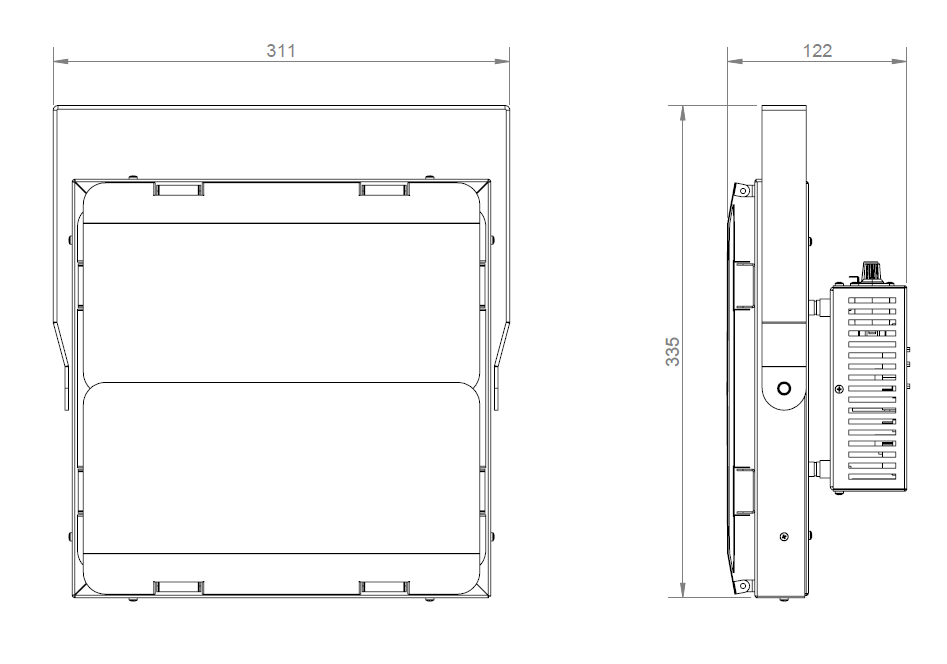

- Dimension 310 x 310 x 110mm
- Weight 4.2 Kgs/ 9.25 lbs

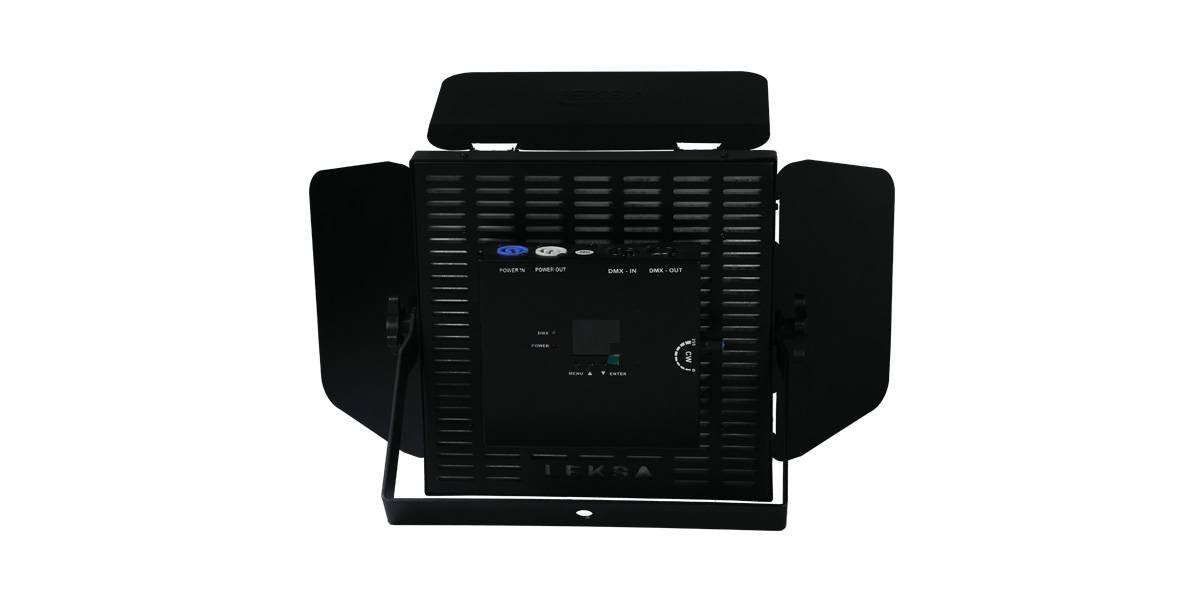

- DmX 5 Pin In and Out
- Power Loop In and Out
- Ingress Protection IP20
- MS Body with Black Powder coated finish
- LCD Easy View Display

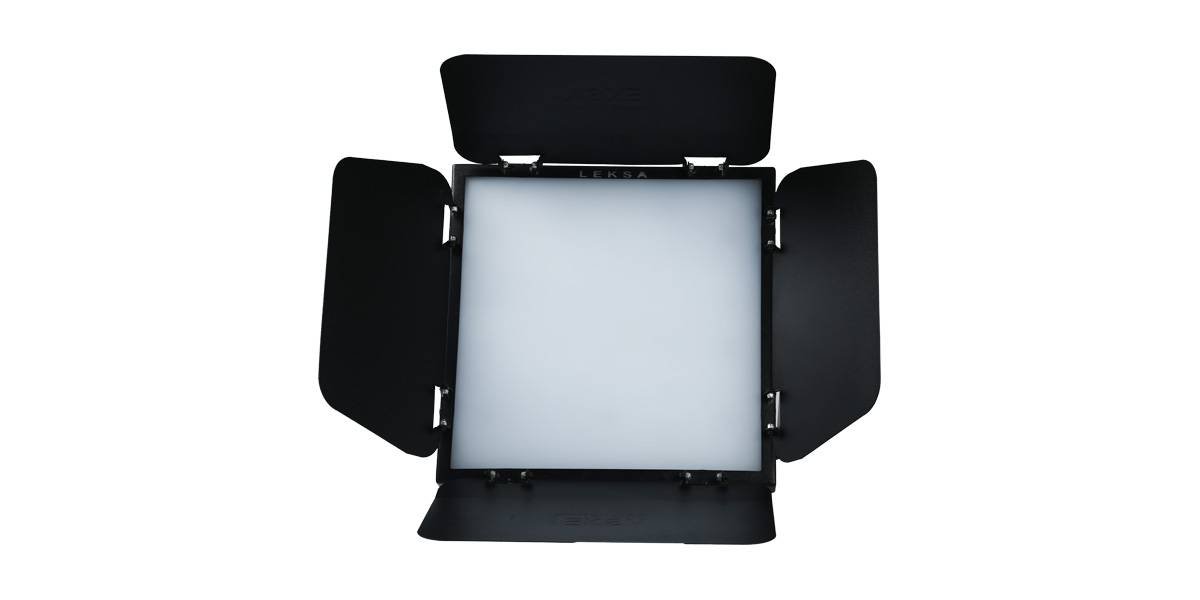

- Inbuilt Barndoor arrangement

Control:
- DmX 512 Through 5 Pin XLR
- Manual Mode Operation
- 1 Channel DmX Control
- Master slave mode through keys /pot

Others:
- Working Temperature +45° ~ -30°
- Passive Cooling Systems, No Fan
- Compatible for High Speed Photography 10K FPS
- Flicker Free & Green tone free
