OverView

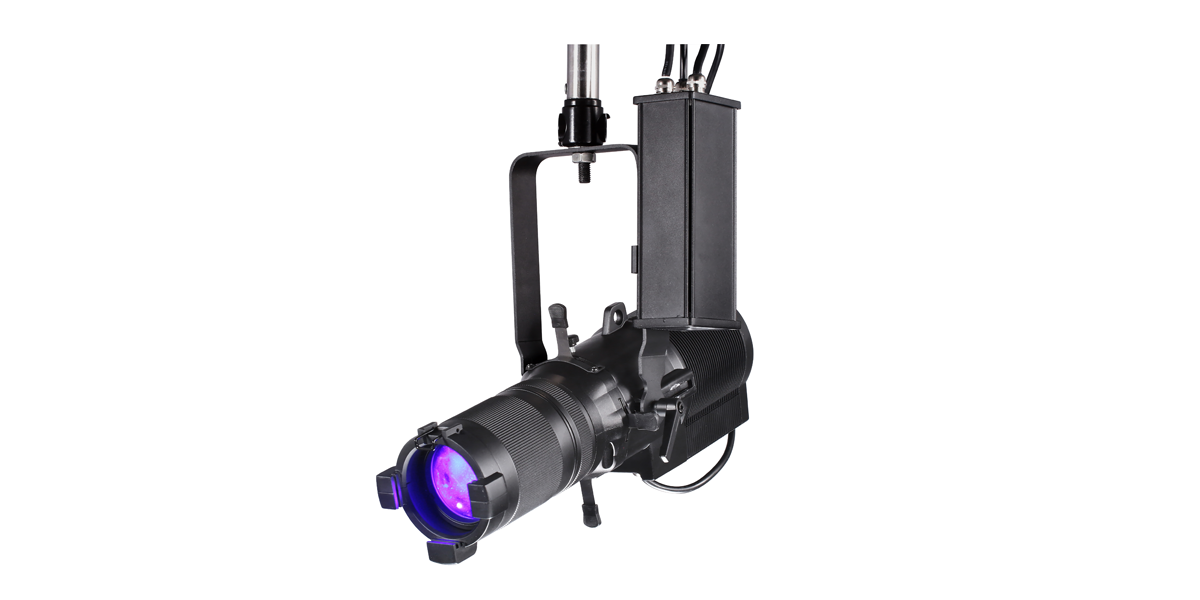

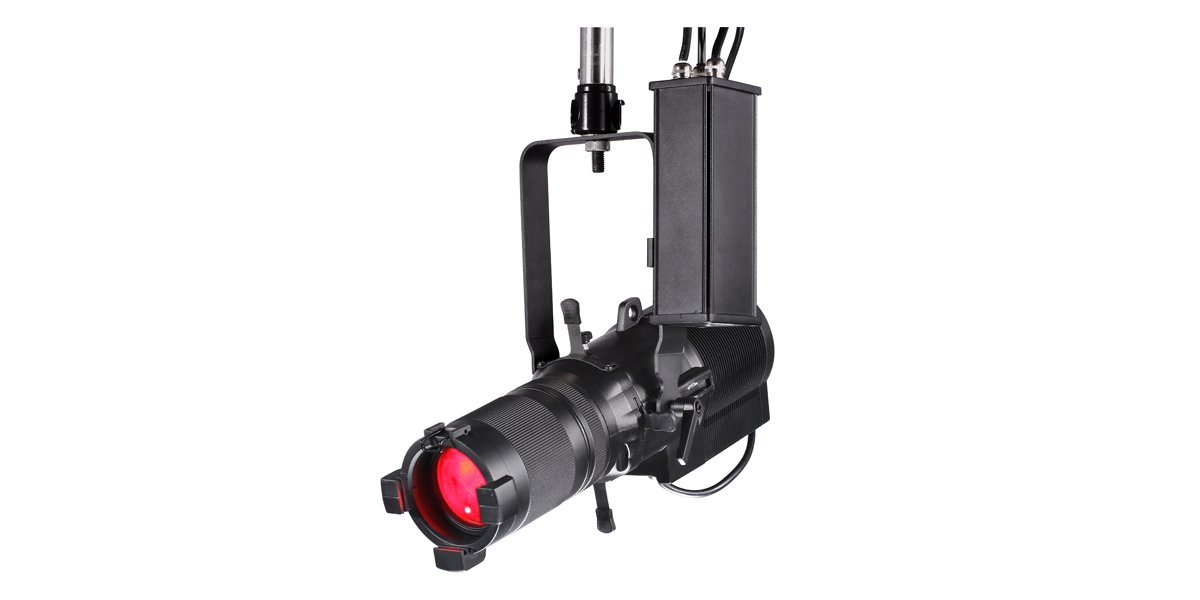

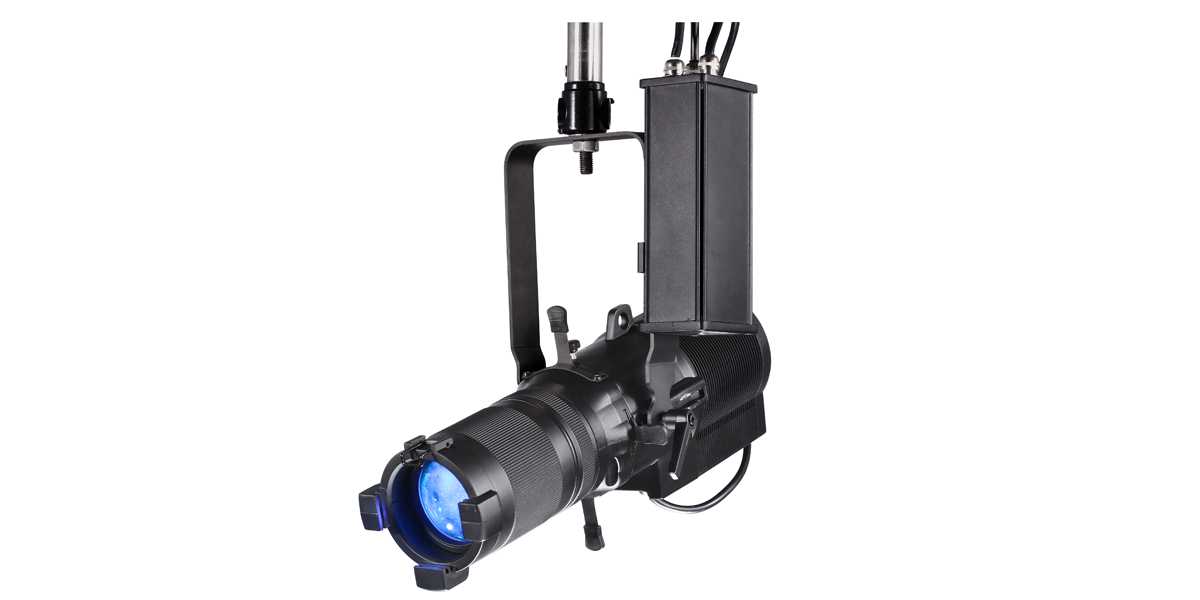

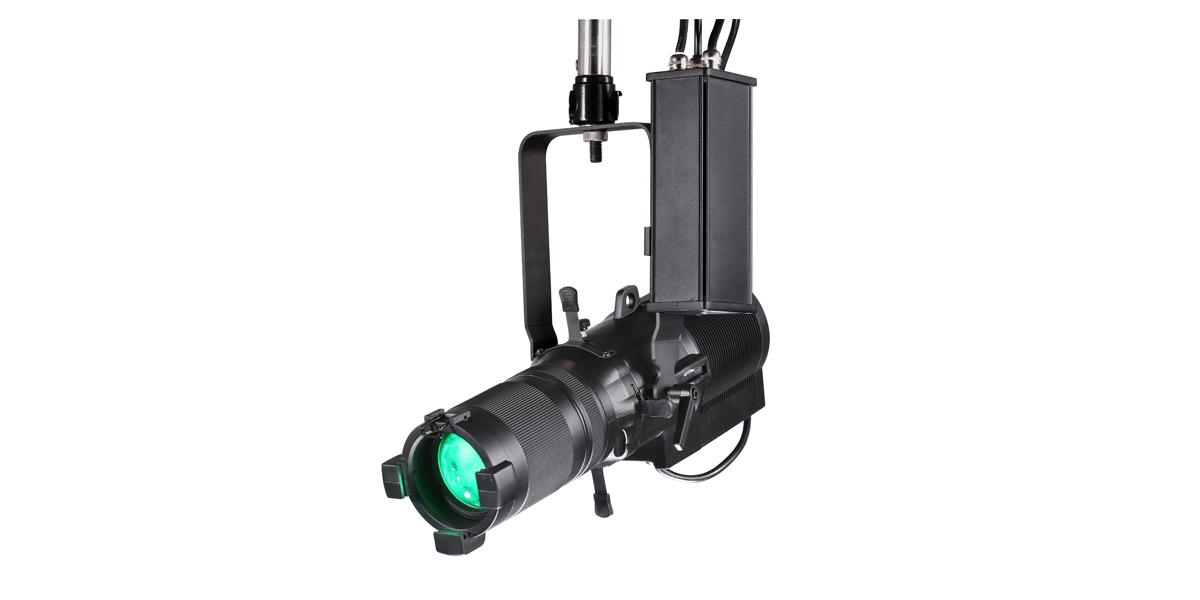

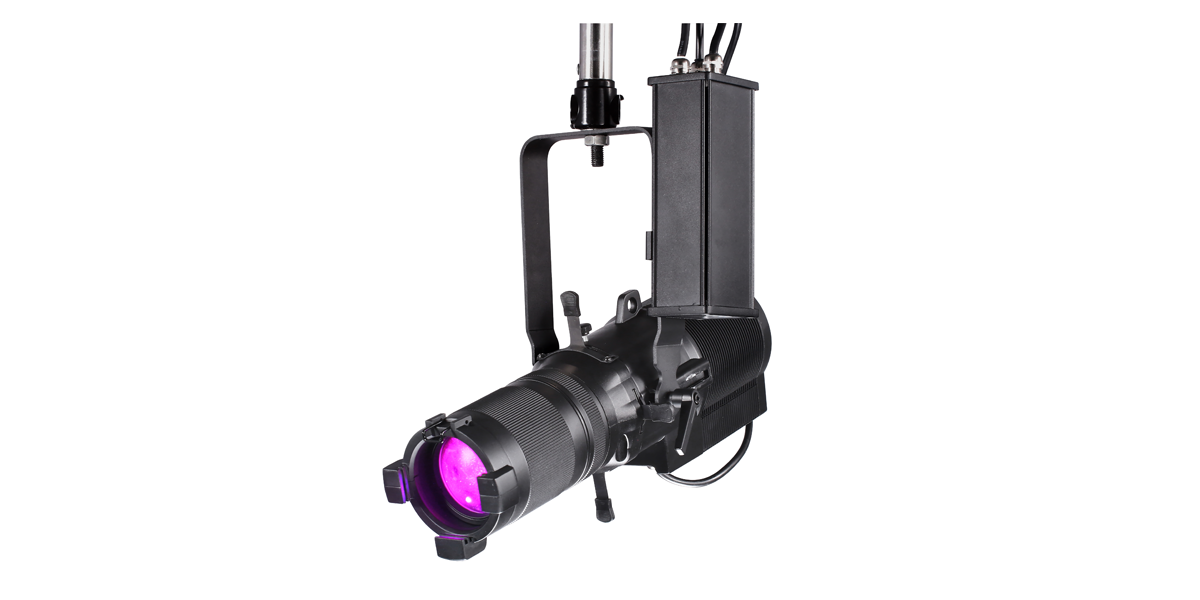

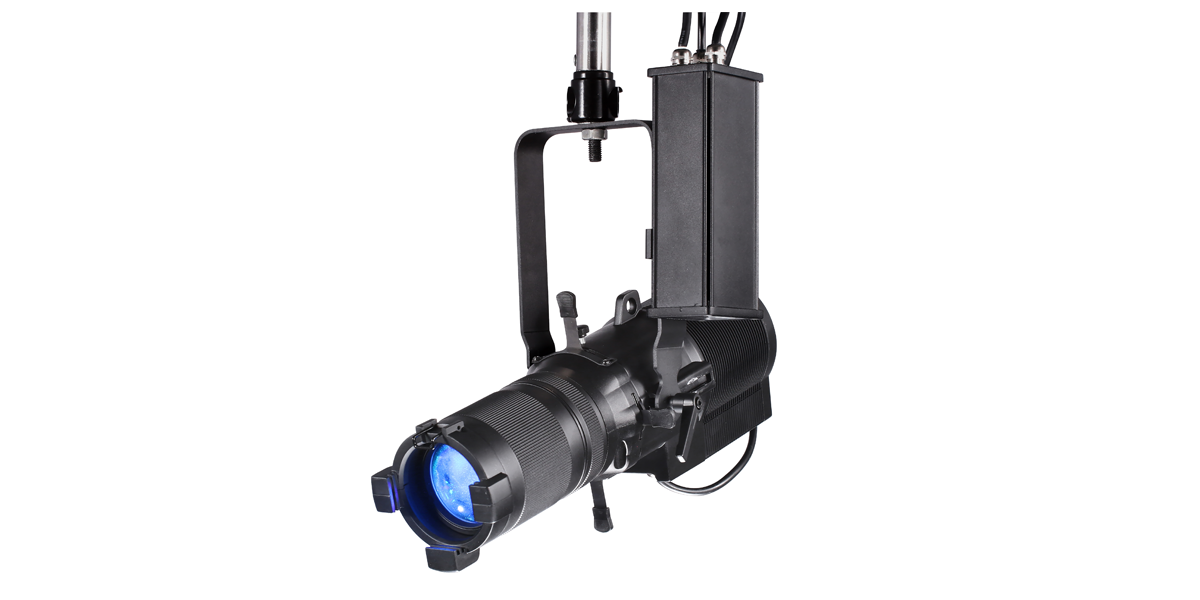

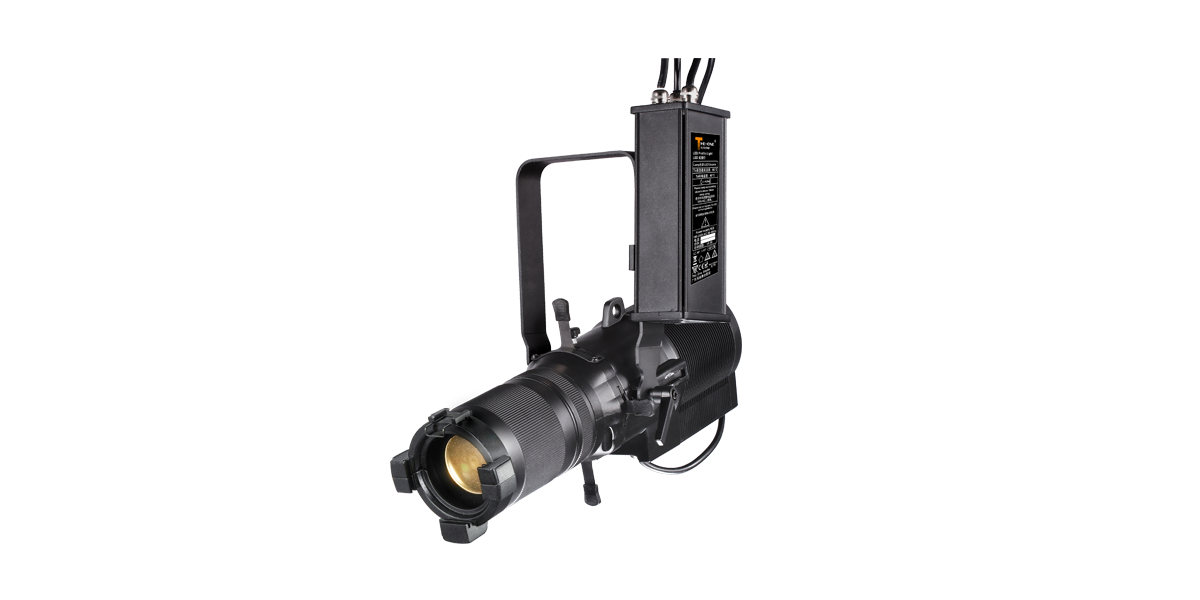

80W ZOOM Profile

Product Model No. : LK ZPRO 80 T

High Quality Superior Output Long through professional ellipsoidal 80W LED zoom profile light with Zoomable high quality sharp edge optical Lenses to adjust the beam from 25 Degree to 50 Degree suitable for special illumination effects for Auditorium stages, TV production Studios Event Stages and multipurpose venues. Accessories: Power cord, Gobo Holder, Gobos

Technical Specifications:

Electrical & Power:
- Power Consumption : 80W
- Input Voltage : AC 100V ~ 240V, 50Hz

Optical Arrangement:
- Beam Angle 15° - 30° or 25° - 50°

Lamp Source:
- LED COB Based Source 3200K
- Colour Rendering Index 90+
- Tel. Lighting Consistency Index 90+
- R9 Value 90+
- 50,000 Hours Burning life

Physical & Construction:

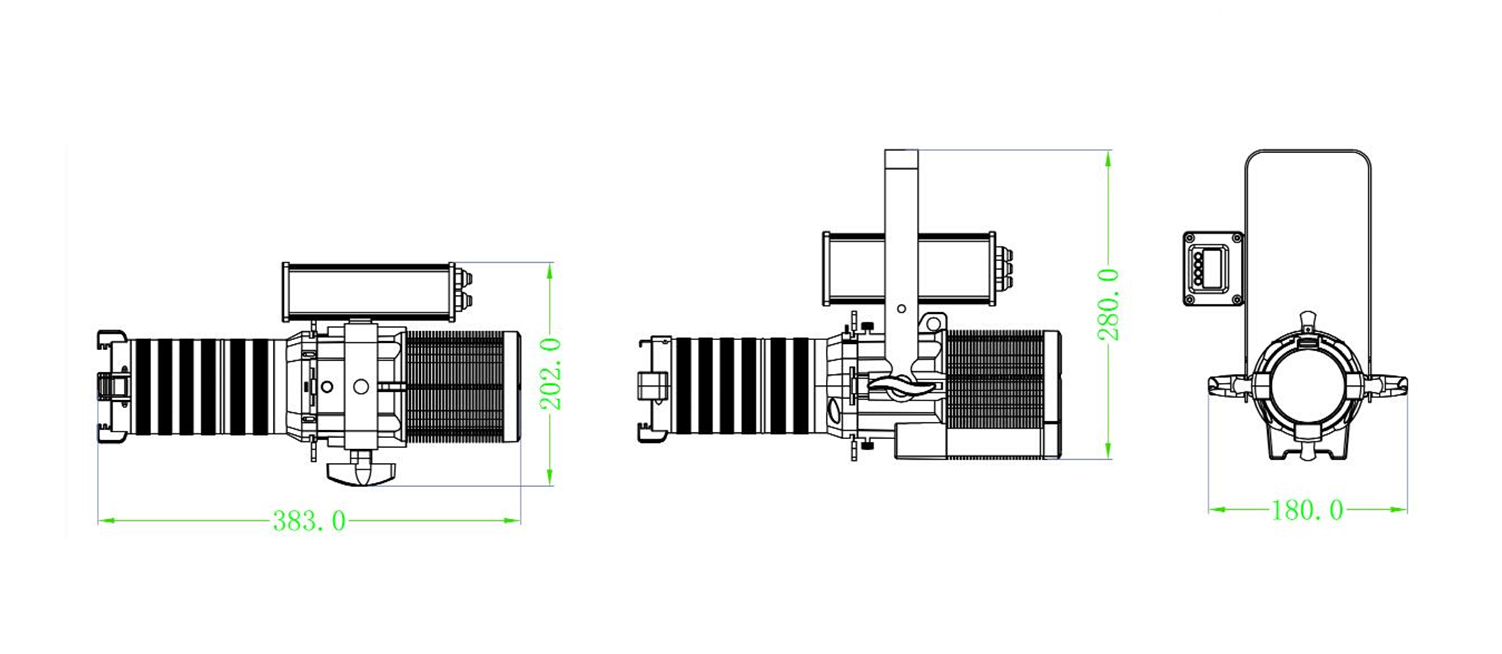

- Dimension 445 x 210 x 140mm
- Weight 4 Kgs/ 8.8 lbs
- DmX 5 Pin In and Out
- Power Loop In and Out
- Ingress Protection IP65
- Aluminium Alloy
- Efficient and well designed reflector
- Manually adjustable yoke Mount
- Black/White Powder coated finish
- LCD Easy View Display

Control:
- DmX 512 Through 5 Pin XLR
- 1/3 Channel DmX Control
- DMX/RDM/Auto Run/Master Slave & Manual
- 0% to 100% Dimming
- Manual focus with 4 beam shaping cutters

Others:
- Working Temperature +40° ~ -30°
- Strobe option adjustable 1 ~ 25 times/Sec
- 4 Kinds of Dimming Curves
