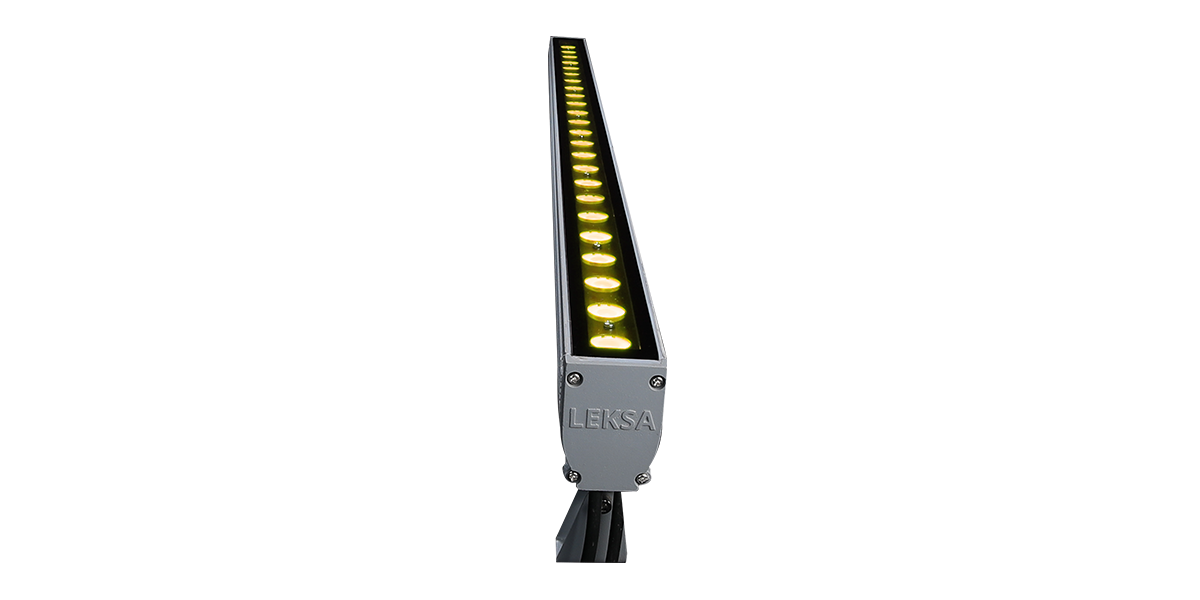

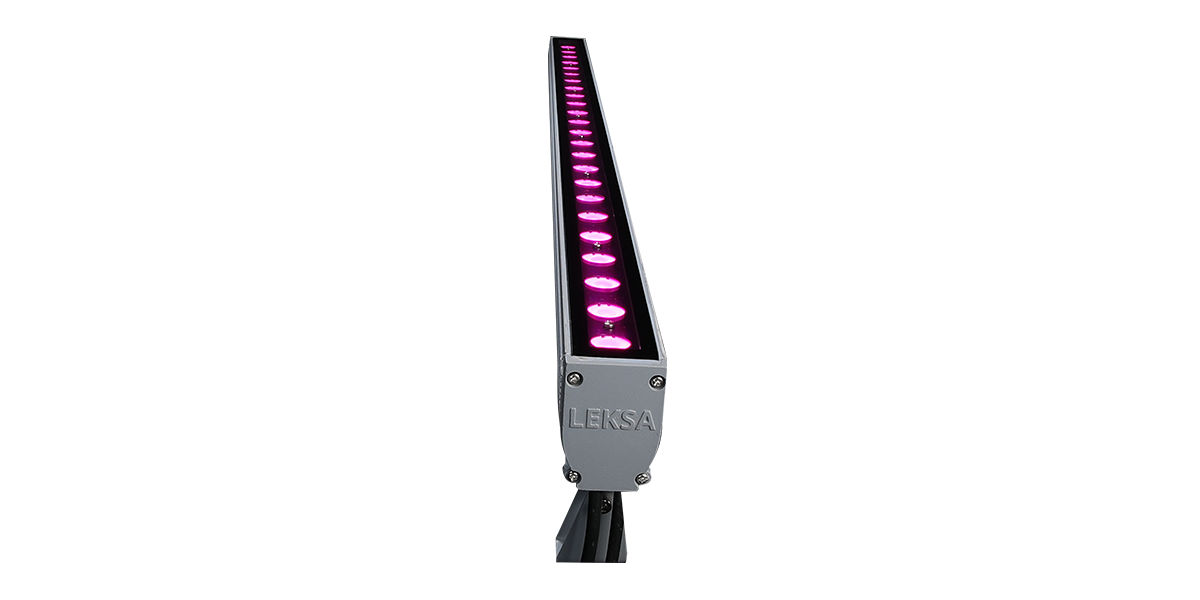

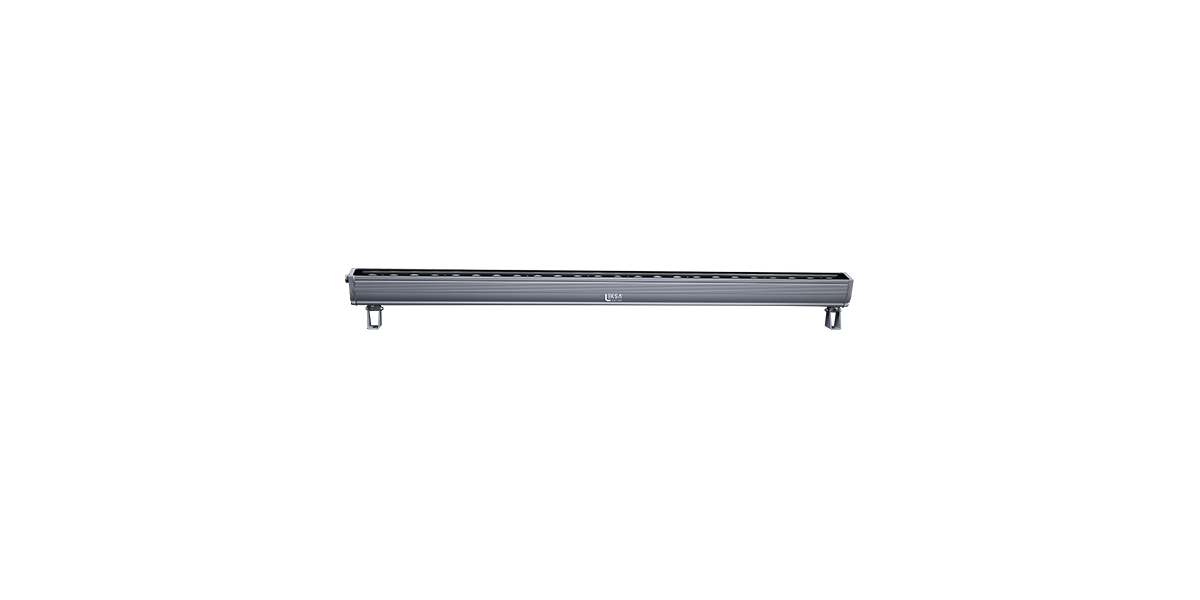

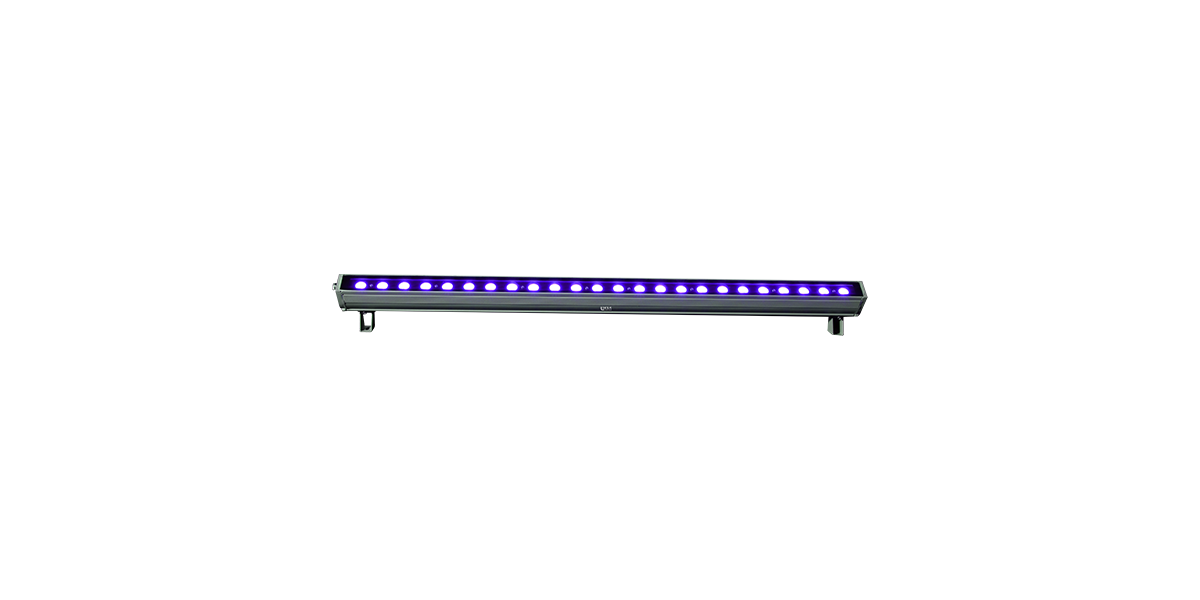

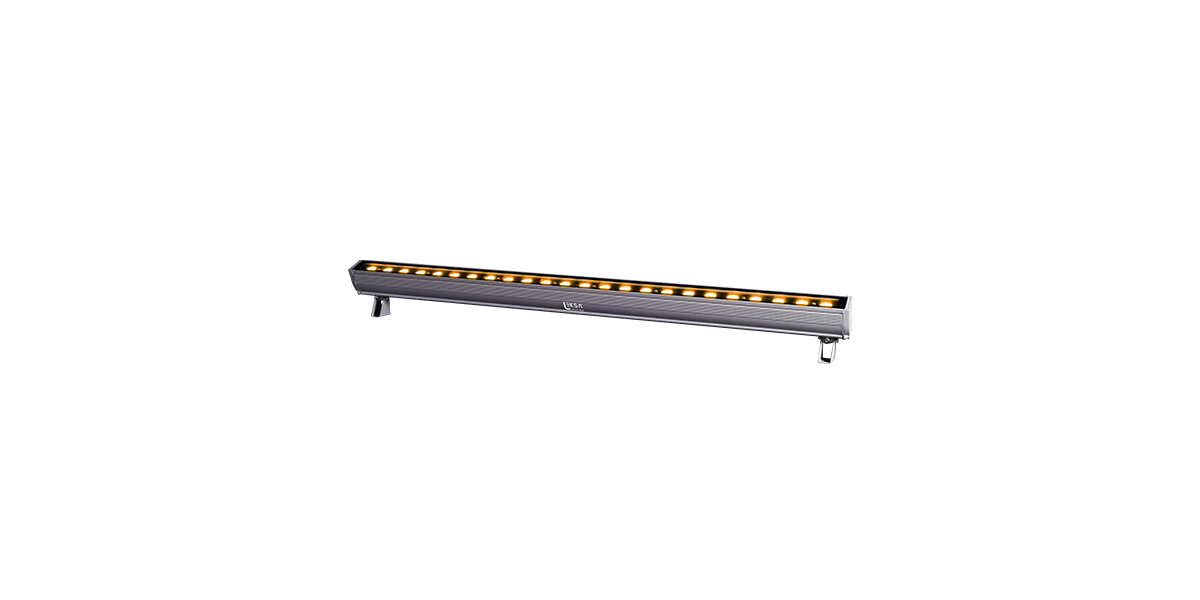

1000mm 50W LED RGBW LINEAR WASH LIGHT

Product Model No. : LK LW 46 – 55
Linear wash lights are versatile fixtures designed to illuminate spaces with a uniform, elongated beam of light. Their sleek, elongated design makes them ideal for accentuating architectural features, highlighting artwork, or creating dramatic lighting effects. These fixtures offer precision and flexibility, making them essential tools for both indoor and outdoor lighting design.

Technical Specifications:

Electrical & Power:
- Power Consumption : 50W
- Input Voltage / Current : DC 24V / 2000 mA
- Electrical Class : III Class
- Power Factor (Min) : 0.9
- Harmonic Distortion : <10 %
- Driver / power unit : External

Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 32°

Lamp Source:
- LED Source : SMD Based
-Colour Temperature : RGBW
- CRI (Ra) :>80
- Lumens/W : > 55
- Net Luminous Flux : 2750
- SDCM : <3
- LED Hours Burning life : 50,000

Control & Others:
- Control Option : DmX512 / Auto
-DmX Channels : 4 CH

Physical & Construction:
- Dimension : 1000 x 45 x 115mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey
- Mounting Type : Yoke Mount
- Impact Resistance : IK07
- Connector : M / F Cable Mount
- Working Temperature : +55°~ -30°
