Product Model No. : LK LW 25 – 35
Façade Lighting breathes life into unique facades & architecture in private or public spaces. it can also be used to add an artistic feel to the exteriors with shadows, also use up-lighting for pillars and columns to add a simple contrast or to accentuate the object for making it the centre of attraction
Electrical & Power:
- Power Consumption : 30W
- Input Power : DC 24V
Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 32°
Lamp Source:
- LED Source : SMD Based
- Colour Temperature : RGBW
- Lumens/W : > 55
- Net Luminous Flux : 1650
- No of LED’s : 24 No’s
- LED Hours Burning life : 50,000
Control & Others:
- Control Option : DmX 512 / Auto Mode
- DmX Channels : 4 DmX Channels
- Working Temperature : +55° ~ -30°
- SDCM : < 5
- Power Factor (Min) : 0.9
- Driver/power unit : External Power Supply
Physical & Construction:

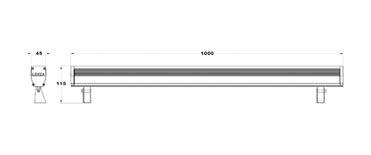

- Dimension : 1000 x 45 x115mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey / Custom
- Mounting Type : Clamp / Surface Mount
- Impact Resistance : IK07
- Cooling : Passive Cooling System
- Protection Class : III Class
Light Distribution chart
Chromaticity Report
Lux level distribution (25°)
