OverView

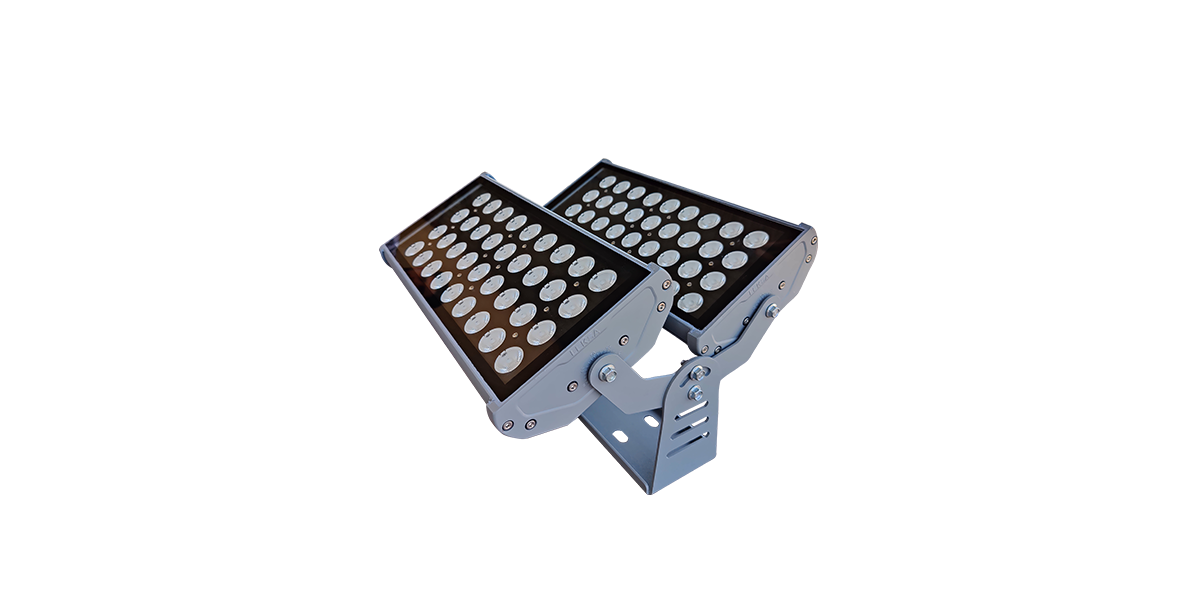

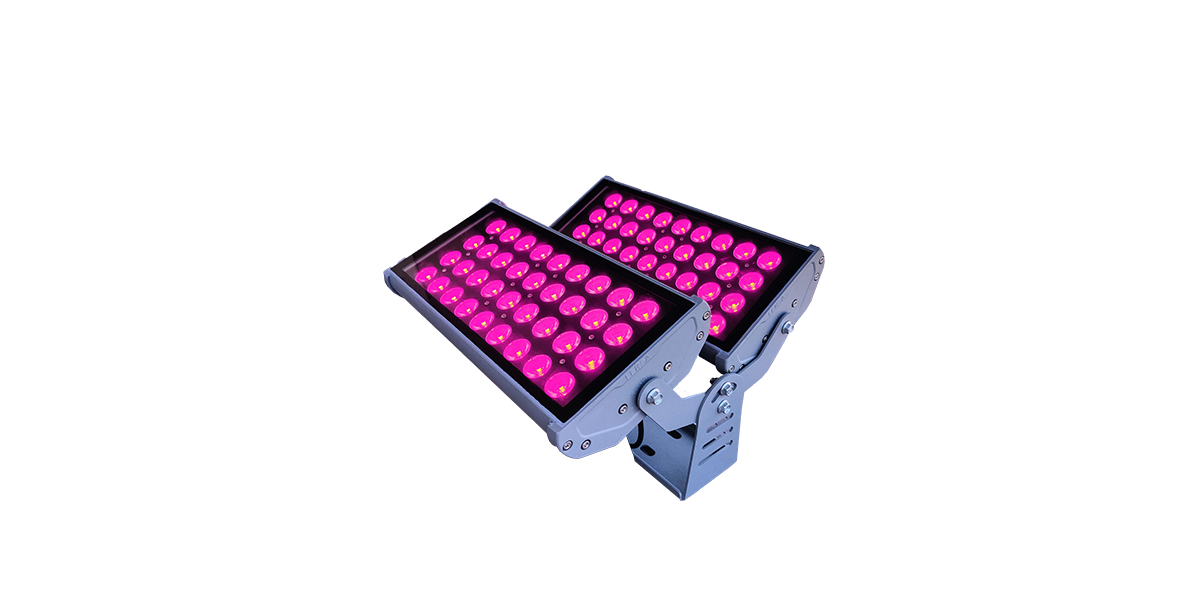

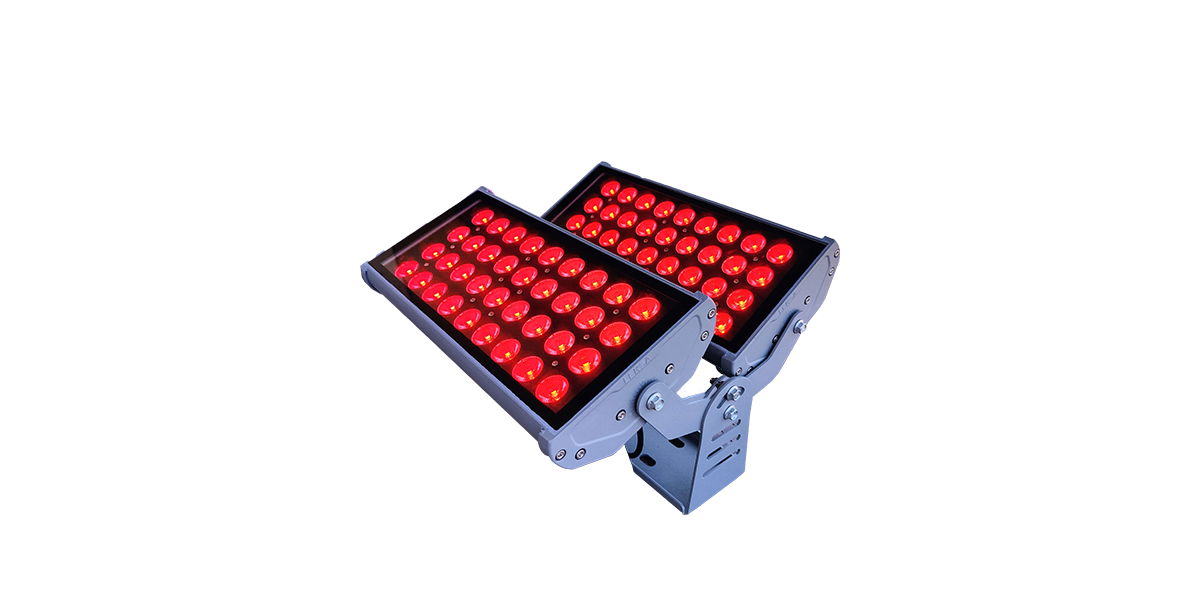

240W LED RGBW WASH LIGHT

Product Model No. : LK WASH 201 – 240

Façade Lighting breathes life into unique facades & architecture in private or public spaces. This spot light adds an artistic feel to the exterior architecture & also used as an up-lighting for pillars and columns to add a simple contrast or to accentuate the object for making it the centre of attraction.

Technical Specifications:

Electrical & Power:
- Power Consumption : 240W
- Input Voltage / Current : DC 24V / 10000mA
- Electrical Class : III Class
- Power Factor (Min) : 0.9
- Harmonic Distortion : <10%
- Driver / power unit : External

Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 32°

Lamp Source:
- LED Source : SMD Based
- Colour Temperature : RGBW
- CRI : >80
- Lumens/W : > 55
- Net Luminous Flux : 13200
-SDCM : <3
- LED Hours Burning life : 50,000

Control & Others:
- Control Option : DmX 512 / Auto
- DmX Channels : 4 CH

Physical & Construction:
- Dimension : 420 x445x230mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey
- Mounting Type : Yoke Mount
- Impact Resistance : IK08
- Connector : M /F Cable Mount
- Working Temperature : +55° ~ -30°
