Product Model No. : LK LW 16 – 24

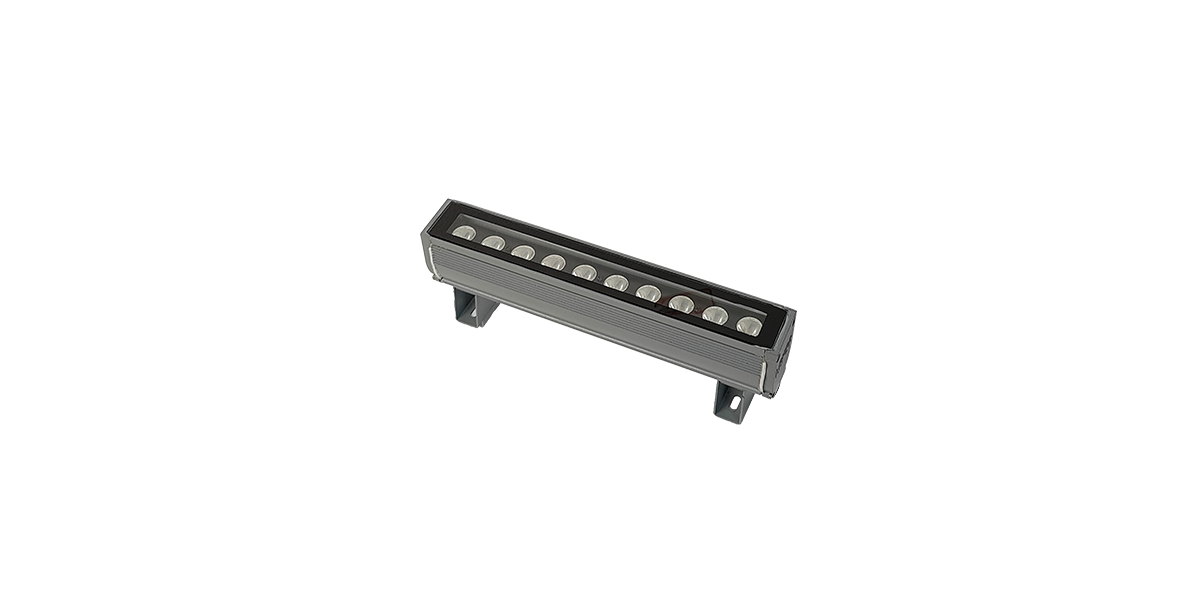

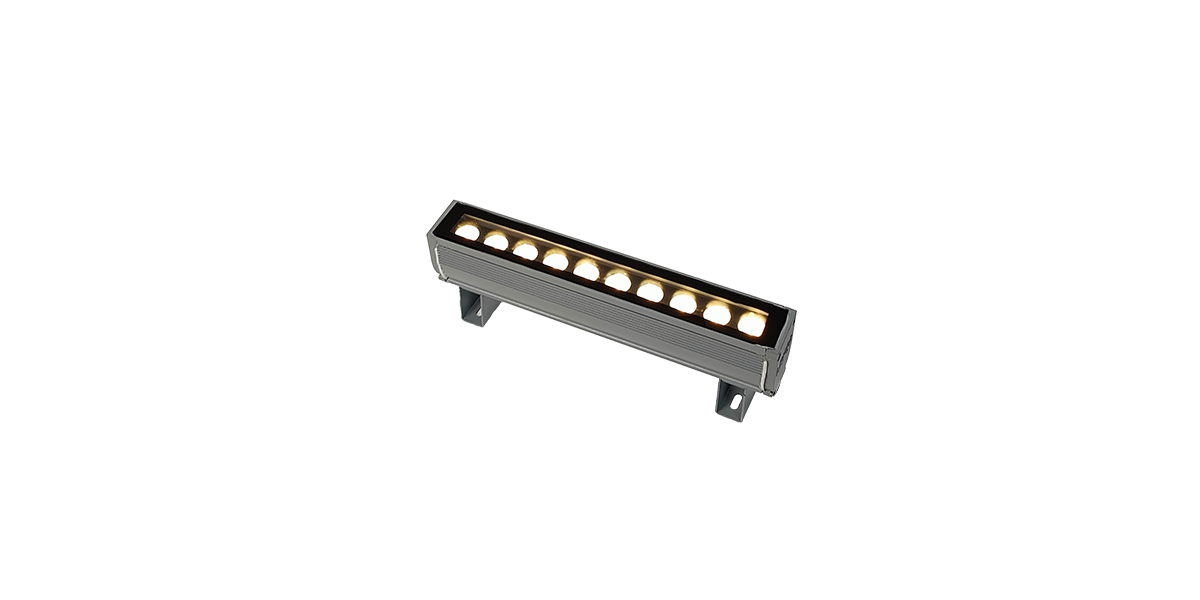

Linear wash lights are sleek and versatile fixtures, perfect for accentuating architectural details or creating striking visual effects. Their elongated design offers precise and uniform illumination, making them an excellent choice for highlighting structures or spaces with a specific colour scheme. These lights are a streamlined solution for impactful, monochromatic outdoor or indoor lighting designs.
Electrical & Power:
- Power Consumption : 20W
- Input Voltage / Current : DC 24V / 800 mA
- Electrical Class : III Class
- Power Factor (Min) : 0.9
- Harmonic Distortion : <10 %
- Driver / power unit : External
Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 32°
Lamp Source:
- LED Source : SMD Based
-Available CCT : 3000K, 4000K, 6500K, 1800K
- CRI (Ra) :>70 (80 CRI -On Request )
- Lumens/W : > 110
- Net Luminous Flux : 2200
- SDCM : <3
- LED Hours Burning life : 50,000
Control & Others:
- Control Option : On / Off
Physical & Construction:
- Dimension : 303 x 45 x 115mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey
- Mounting Type : Yoke Mount
- Impact Resistance : IK07
- Connector : M / F Cable Mount
- Working Temperature : +55°~ -30°
Light Distribution chart
Chromaticity Report
Lux level distribution (25°)
