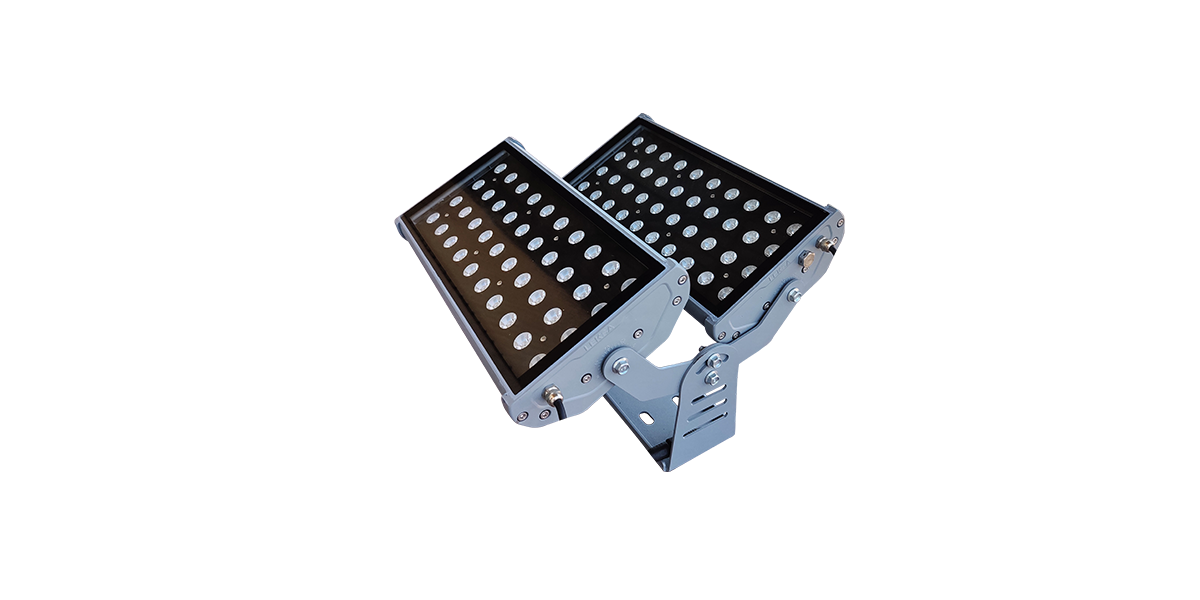

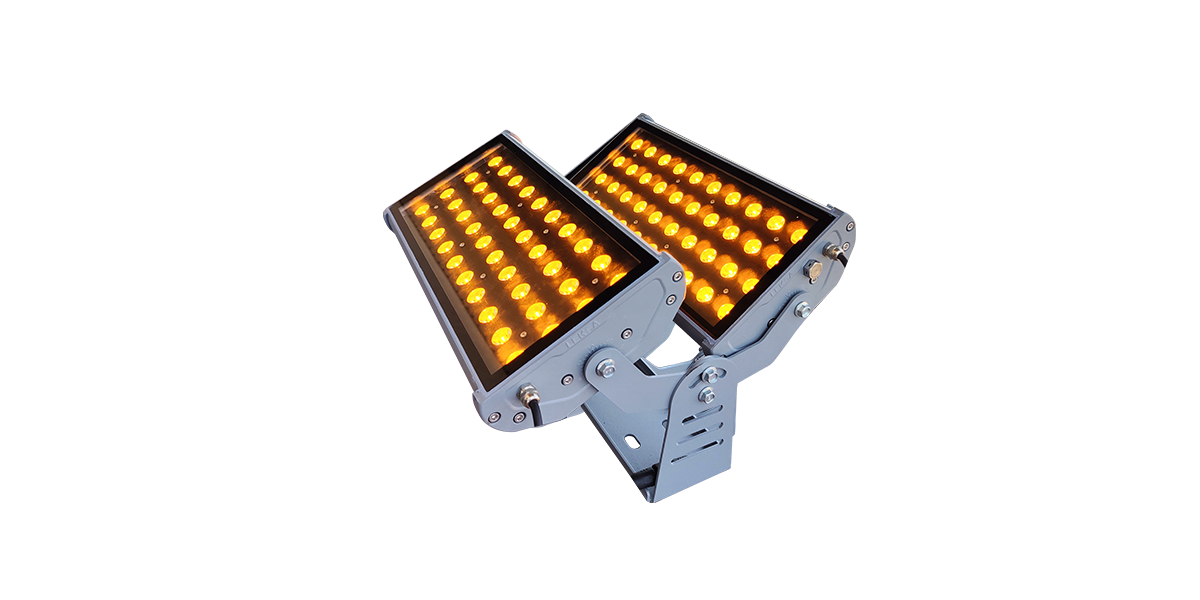

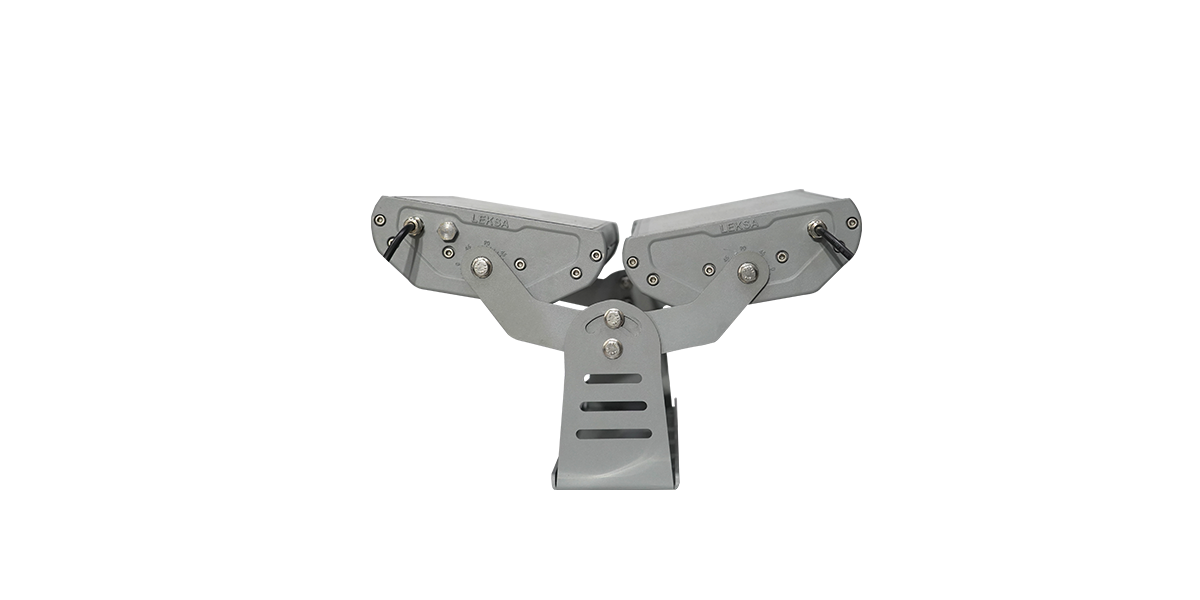

Product Model No. : LK WASH 181 – 200
Wash lights, designed for exterior applications, enhance landscapes, buildings, and outdoor events. They provide a
powerful and even illumination that transforms outdoor spaces with vibrant colours and atmospheric effects. Weather- resistant and durable, these lights bring versatility to outdoor design, creating captivating and beautiful environments after dark.
Electrical & Power:
- Power Consumption : 200W
- Input Voltage / Current : DC 24V / 8000mA
-Electrical Class : III Class
-Power Factor (Min) : 0.9
-Harmonic Distortion : <10%
-Driver / power unit : External
Optical Arrangement:
- Beam Angle : 25°
- Optional Beam Angle : 15° , 45°
- Field Angle : 32°
Lamp Source:
- LED Source : SMD Based
- Available CCT : 3000K, 4000K, 6500K, 1800K
- CRI (Ra) : > 70 (80 CRI - On Request)
- Lumens/W : > 110
- Net Luminous Flux : 20000
- SDCM : <3
- LED Hours Burning life : >50,000 Hrs
Control & Others:
- Control Option : On / Off
Physical & Construction:
- Dimension : 420 x425x230mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey
- Mounting Type : Yoke Mount
- Impact Resistance : IK08
- Connector : M / F Cable Mount
- Working Temperature : +55° ~ -30°
Light Distribution chart
Chromaticity Report
Lux level distribution (25°)
