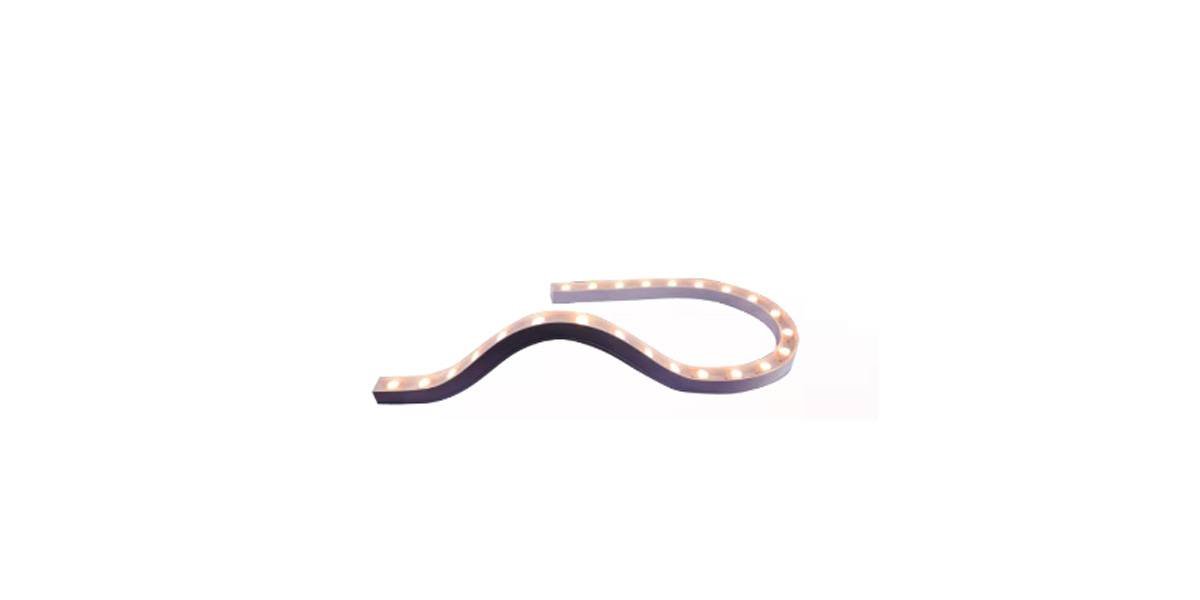

Product Model No. : LK SE 13 – 20
Façade Lighting breathes life into unique facades & architecture in private or public spaces. it can also be
used to add an artistic feel to the exteriors with shadows, also use up-lighting for pillars and columns to add a
simple contrast or to accentuate the object for making it the centre of attraction.
Electrical & Power:
- Power Consumption : 15W
- Input Voltage / Current : DC 24V
Optical Arrangement:
- Beam Angle : 30°
- Optional Beam Angle : 45° , 60°
- Field Angle : 35°
Lamp Source:
-LED Source : SMD Based
- Colour Temperature : 3000K
- CRI : >80
- Lumens / W : >100
- Net Luminous Flux : 1500-1800
- No of LED's : 24 No's / Mtr
- LED Hours Burning life : 50,000
Control & Others:
- Control Option : ON/OFF Option
- Operation Mode : Manual Mode
-Working Temperature : +55° ~ -30°
-SDCM :<3
Physical & Construction:
- Dimension : 1000 x 23 x 23mm
- Ingress Protection : IP67 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey / Custom
- Mounting Type : Clamp / Surface mount
- Impact Resistance : IK05
- Cooling : Passive Cooling System
