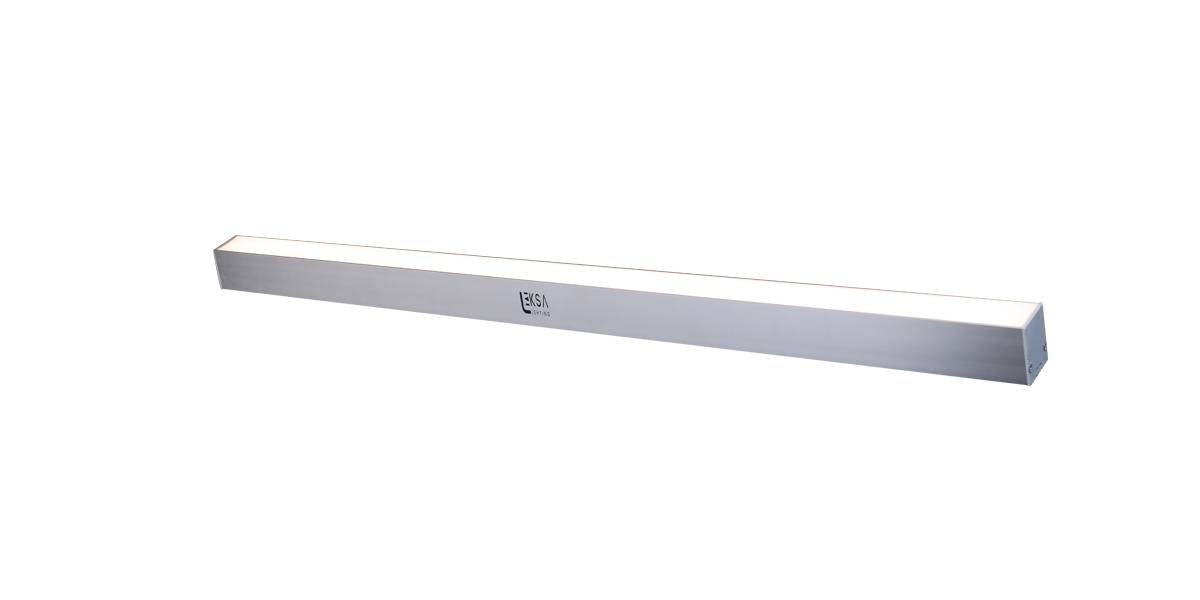

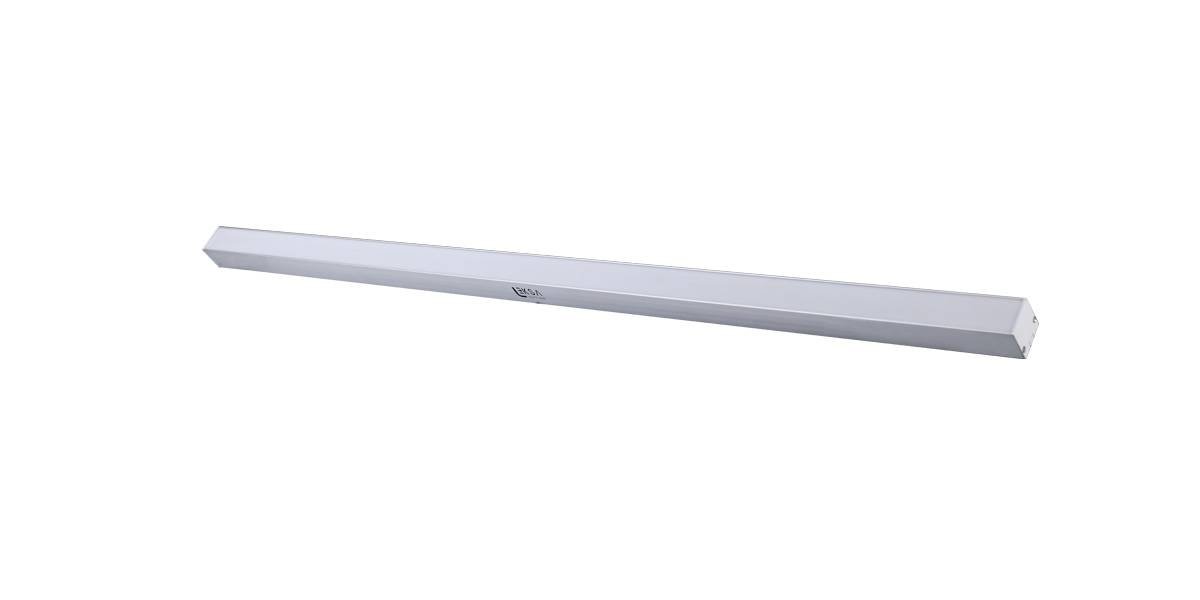

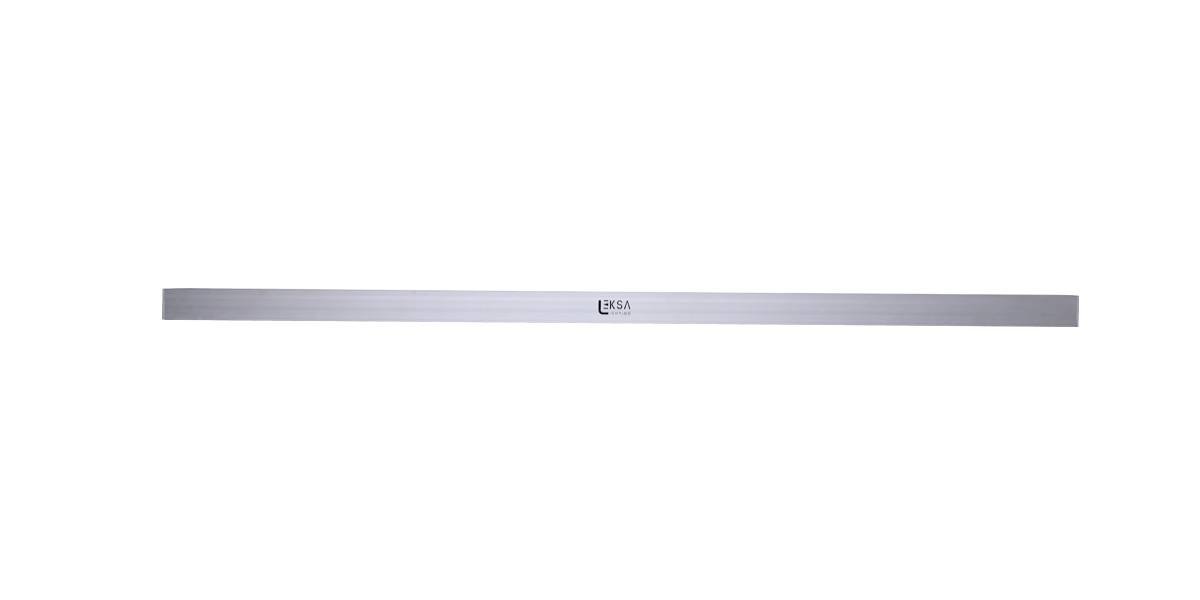

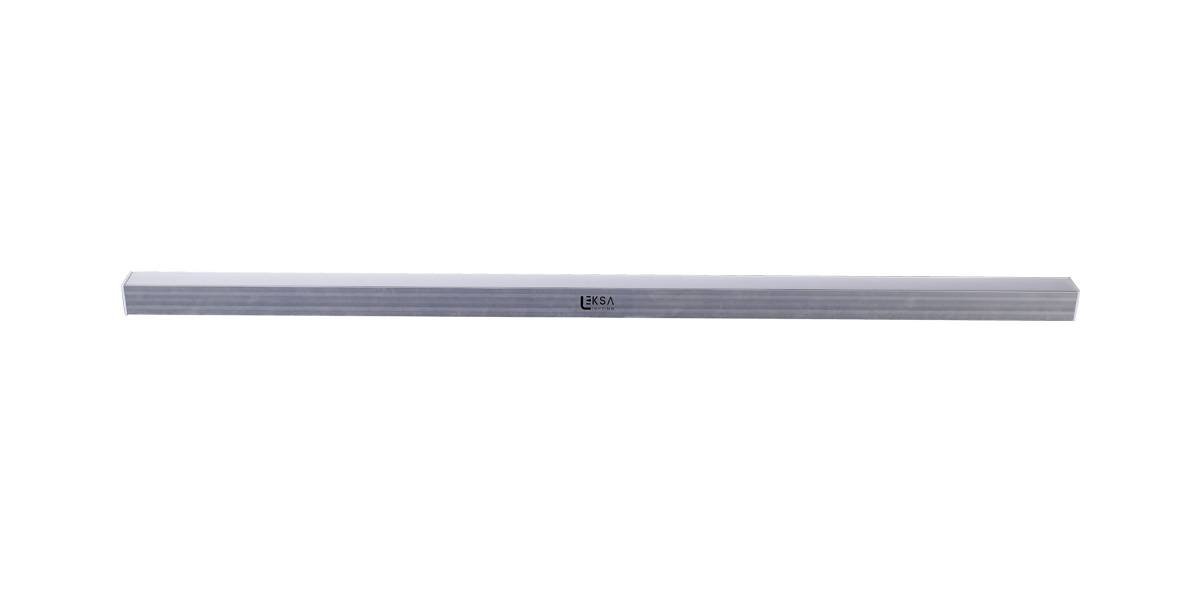

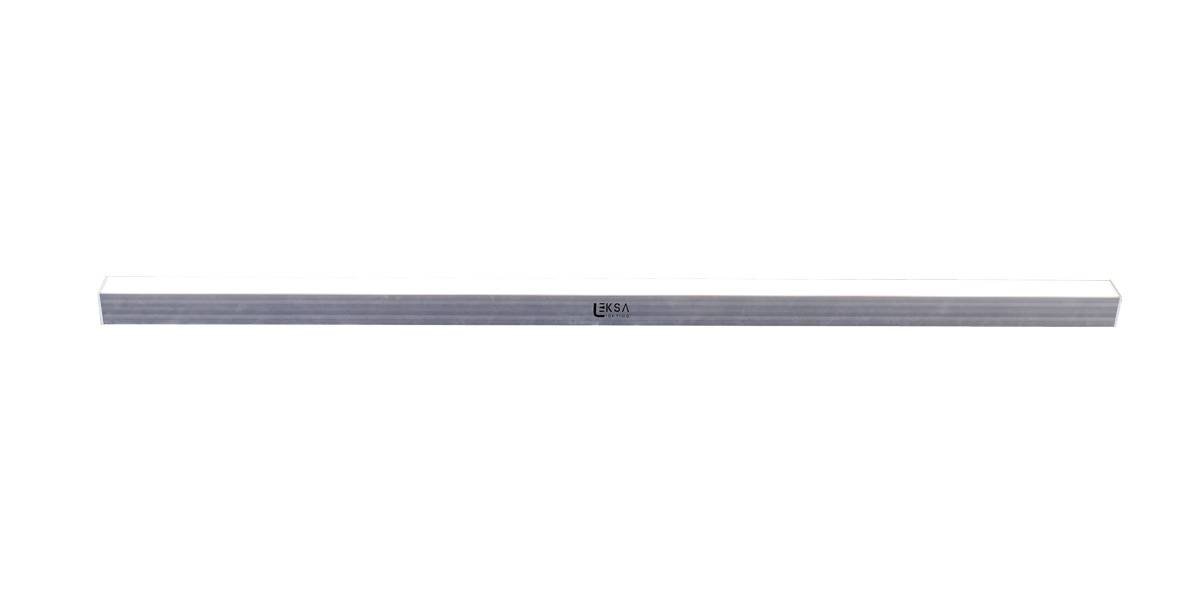

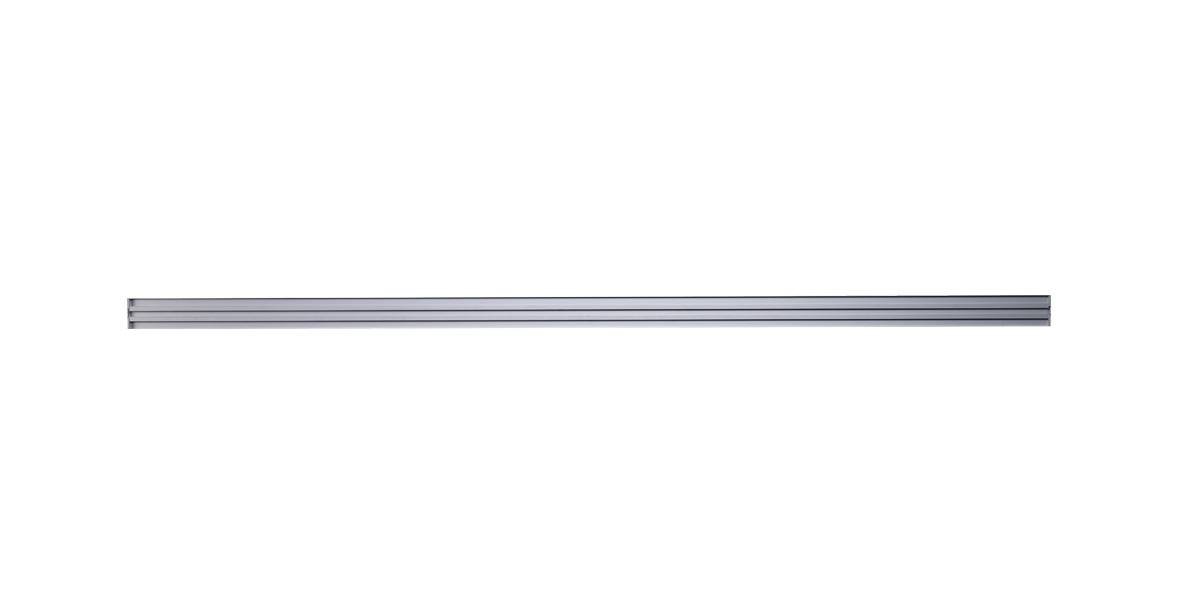

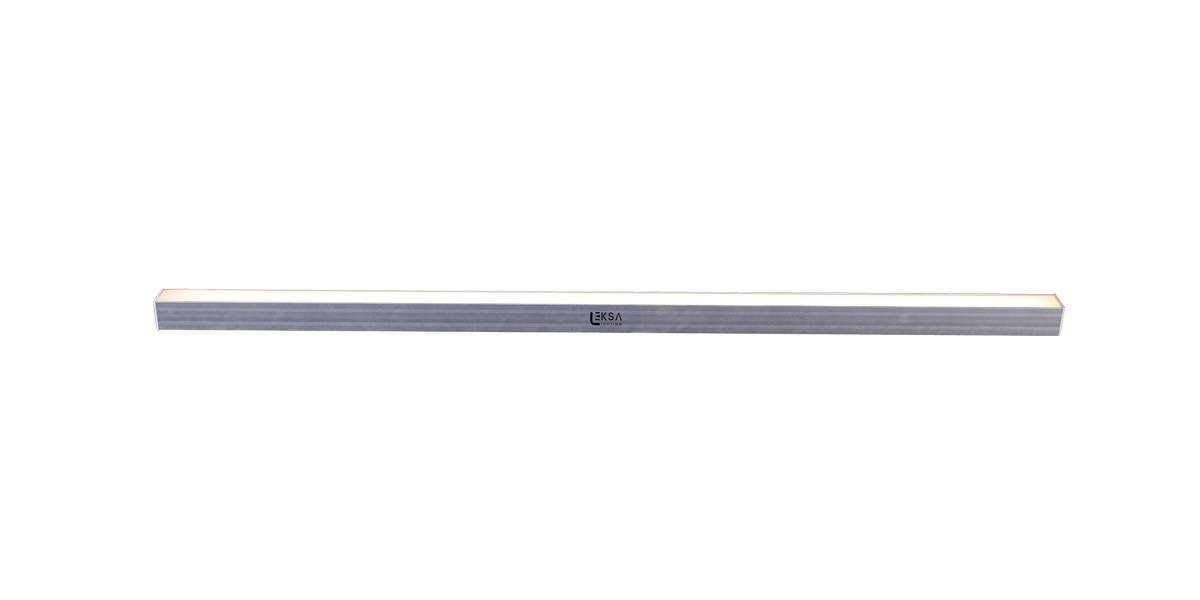

15W 35MM LINEAR PROFILE LIGHT

Product Model No. : LK LW 07 – 15

Façade Lighting breathes life into unique facades & architecture in private or public spaces. This spot light adds an artistic feel to the exterior architecture & also used as an up-lighting for pillars and columns to add a simple contrast or to accentuate the object for making it the centre of attraction.

Technical Specifications:

Electrical & Power:
- Power Consumption : 15W
- Input Voltage / Current : DC 24V/500mA
-Electrical Class : III Class
-Power Factor (Min) : 0.9
-Harmonic Distortion : <10%
-Driver/power unit : External

Optical Arrangement:
- Beam Angle : 120°

Lamp Source:
-LED Source :SMD Bases
- Available CCT : 3000K, 4000K, 5700K
- CRI (Ra) : > 80(90 CRI-On Request)
- Lumens/W : > 65
- Net Luminous Flux : 975lm
- SDCM : <3
- LED Hours Burning life : 50,000

Control & Others:
- Control Option : ON / OFF Option

Physical & Construction:

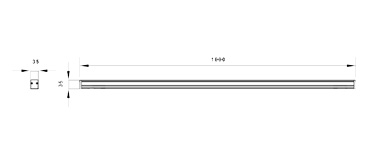

- Dimension : 1000 x 35 x 15mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey
- Mounting Type : Yoke Mount
- Impact Resistance : IK05
- Connector : M/F Cable Mount
-Working Temperature : +55° ~ -30°
