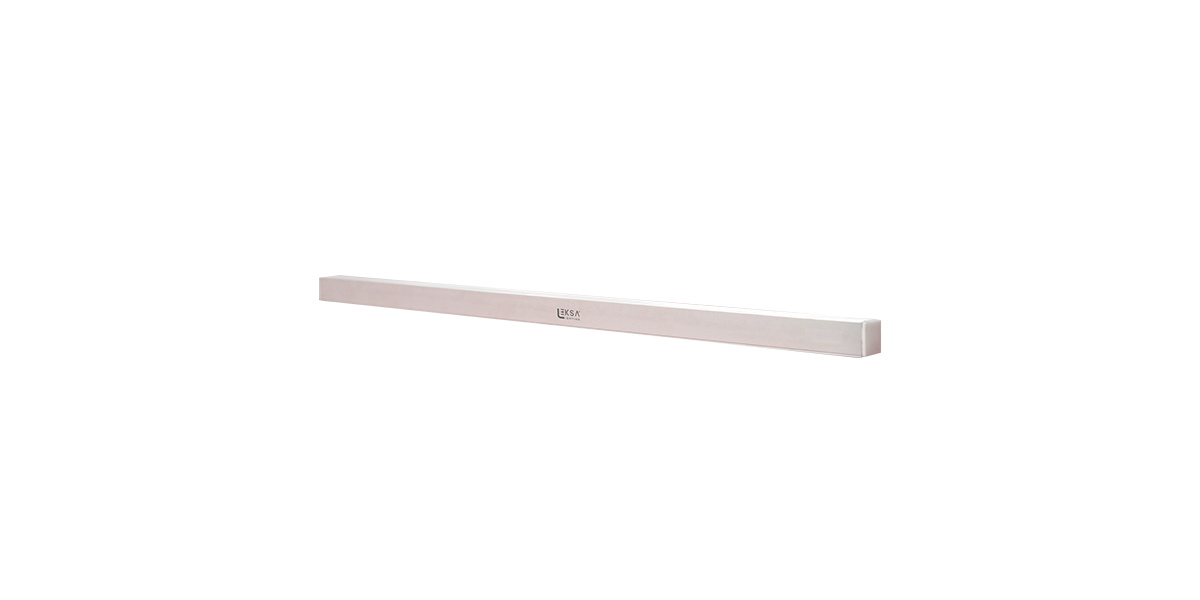

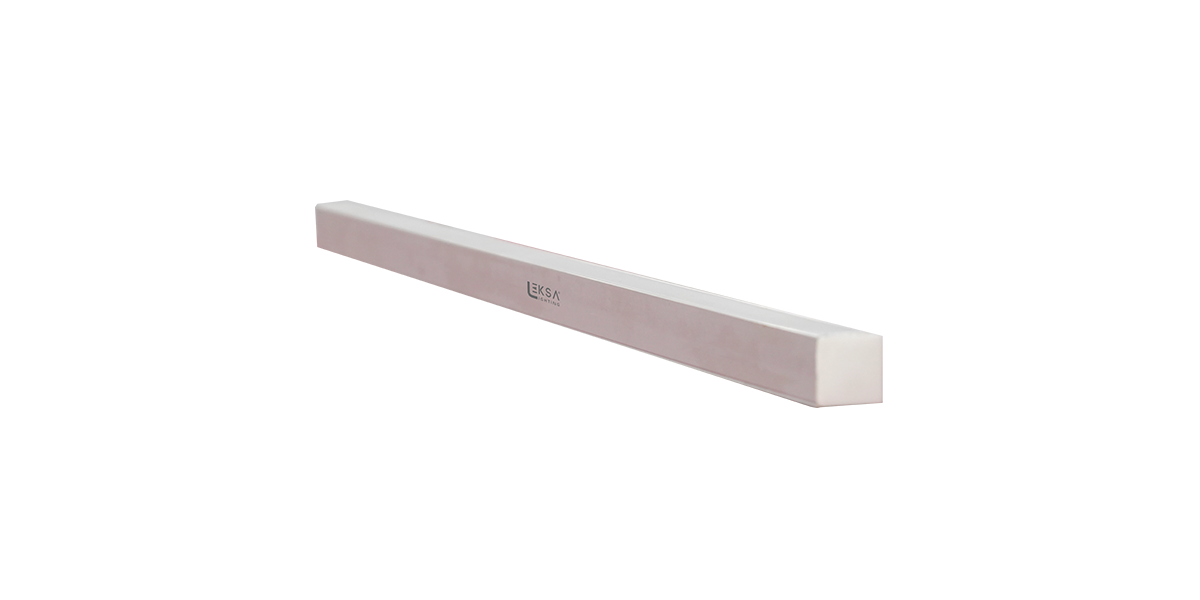

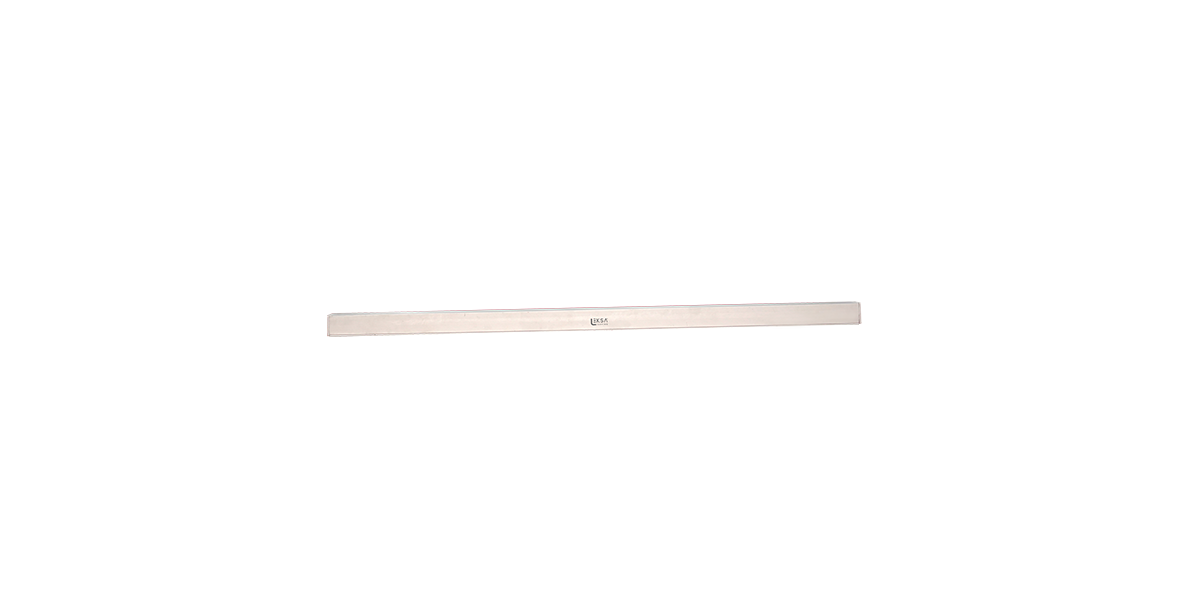

Product Model No. : LK LW 07 – 15
Façade Lighting breathes life into unique facades & architecture in private or public spaces. This spot light adds an artistic feel to the exterior architecture & also used as an up-lighting for pillars and columns to add a simple contrast or to accentuate the object for making it the centre of attraction
Electrical & Power:
- Power Consumption : 15W
- Input Voltage / Current : DC 24V/500mA
-Electrical Class : III Class
-Power Factor (Min) : 0.9
-Harmonic Distortion : <10%
-Driver/power unit : External
Optical Arrangement:
- Beam Angle : 120°
Lamp Source:
- Available CCT : 3000K, 4000K, 5700K
- Colour Temperature : 3000K
- CRI (Ra) : > 80(90 CRI-On Request)
- Lumens/W : > 65
- Net Luminous Flux : 975lm
- SDCM : <3
- LED Hours Burning life : 50,000
Control & Others:
- Control Option : ON / OFF Option
Physical & Construction:
- Dimension : 1000 x 23 x 23mm
- Ingress Protection : IP66 Rated
- Body Housing : Aluminium Die Casted
- Body Colour : Black / Grey / Custom
- Mounting Type : Yoke Mount
- Impact Resistance : IK05
- Connector : M/F Cable Mount
-Working Temperature : +55° ~ -30°
Light Distribution chart
Chromaticity Report
Lux level distribution (120°)
